Industrial environments demand reliable, intelligent monitoring systems to ensure safety, efficiency, and uninterrupted operation. Conventional instrumentation systems rely primarily on static threshold-based alerts, which lack contextual awareness and do not provide actionable guidance during abnormal conditions. To overcome these limitations, this project proposes an Intelligent Retrieval-Augmented Generation (RAG) system for industrial instrumentation, capable of delivering context-aware voice alerts, intelligent suggestions, and automated control actions. The proposed system continuously monitors environmental parameters such as gas concentration, temperature, humidity, and atmospheric pressure using sensors including MQ-135, DHT22, and BMP180. Sensor data is acquired through an Arduino Nano and processed by a Raspberry Pi 4, which acts as the central control and AI inference unit. The system generates AI-driven prompts at regular intervals of 30 seconds, combining real-time sensor readings with historical data and predefined safety knowledge using a RAG-based inference mechanism. When an abnormal condition is detected, the system follows a multi-stage response strategy. In the first stage, an immediate voice warning is issued through a speaker to alert the user while monitoring continues uninterrupted. If the abnormal condition persists, the system enters the second stage, where it delivers intelligent voice-based suggestions generated by the RAG model, guiding the user with corrective or preventive actions. Additionally, if the temperature exceeds the predefined threshold, the system automatically activates a DC fan to regulate environmental conditions. Simultaneously, real-time sensor data and system status are displayed on an LCD display for continuous visual monitoring. By integrating real-time instrumentation with retrieval-augmented AI reasoning, the proposed system enhances situational awareness, supports proactive decision-making, and enables adaptive control in industrial environments. This approach represents a significant advancement toward smart, AI-driven monitoring systems aligned with the principles of Industry 4.0.

The main objectives of this project are:

• To develop an intelligent industrial monitoring system using real-time sensor data.
• To implement a RAG-based AI model for context-aware analysis and decision-making.
• To generate automated prompts every 30 seconds for continuous monitoring.
• To provide multi-stage voice alerts including warnings and intelligent suggestions during abnormal conditions.
• To automatically activate a DC fan when temperature exceeds the threshold limit.

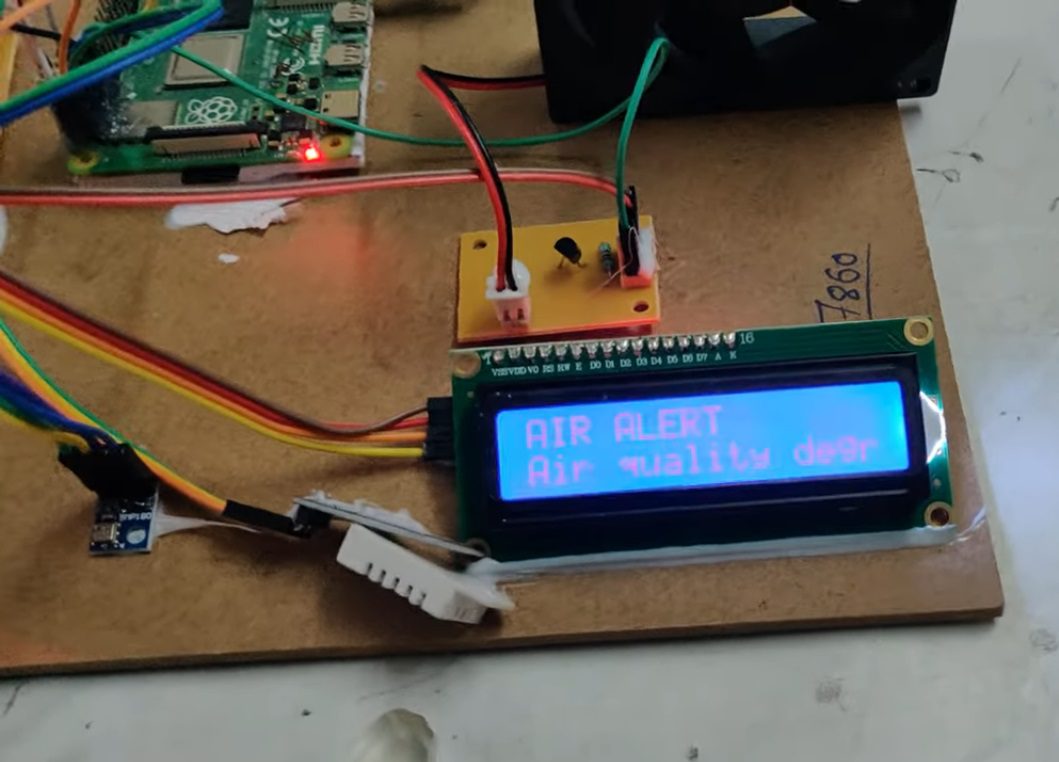

• To display real-time sensor data and system status on an LCD display.

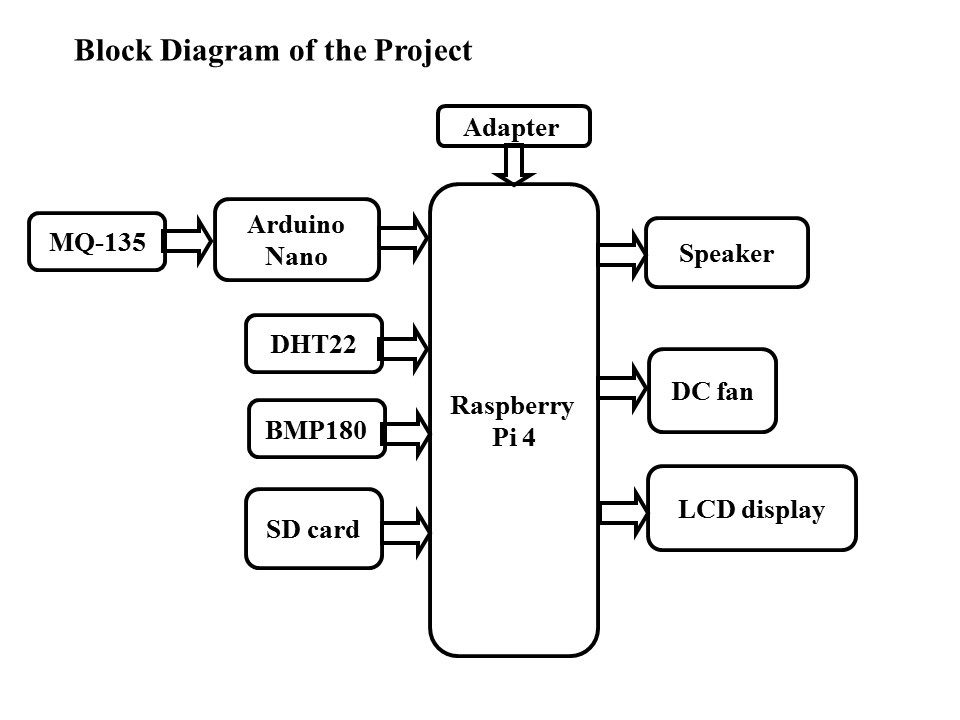

      The major building blocks of this project are:

1. Adapter power supply.
2. Raspberry pi4.
3. Arduino Nano.
4. SD card.
5. Speaker
6. DHT22 sensor.
7. MQ-135 sensor.
8. bmp180.
9. DC fan.
10. LCD display.

        Software’s used:

• Raspbian OS.
• RAG-based AI.
• Express SCH for Circuit design.



video:
