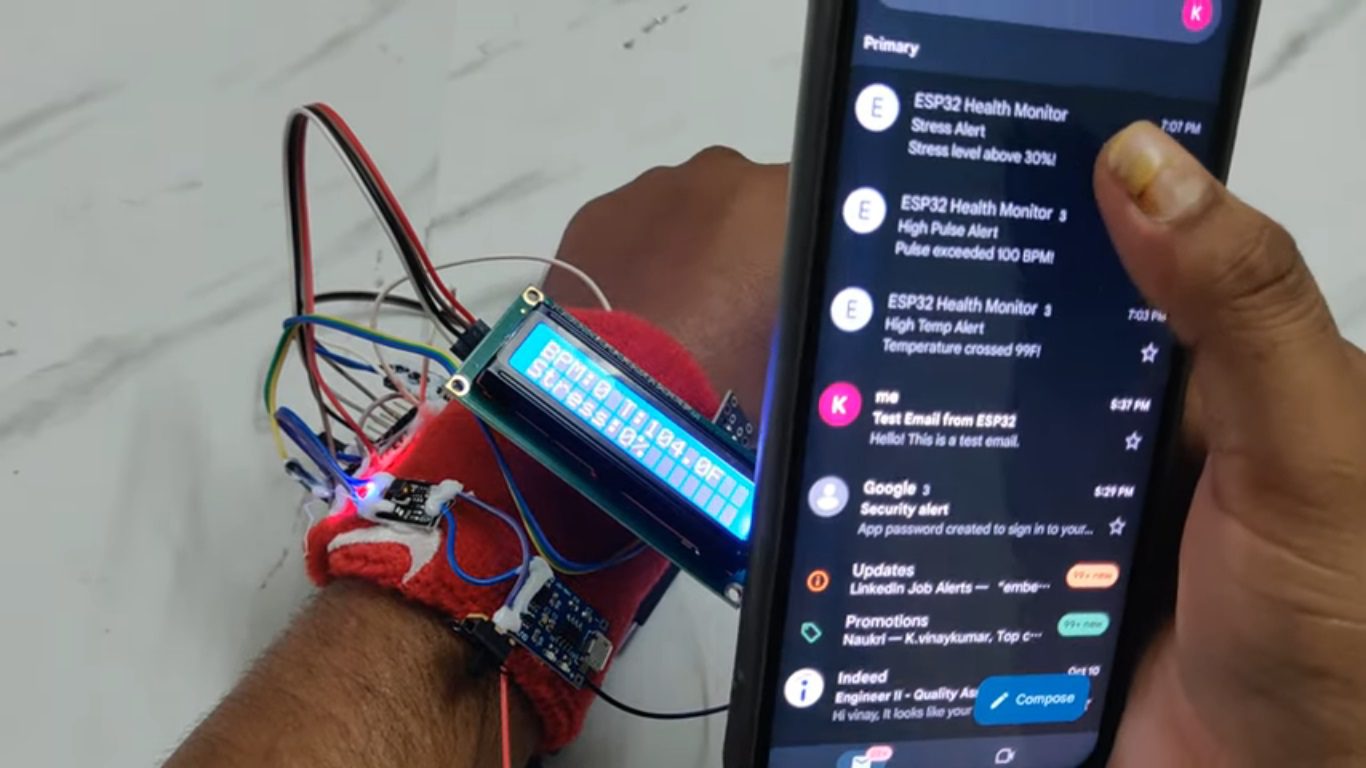

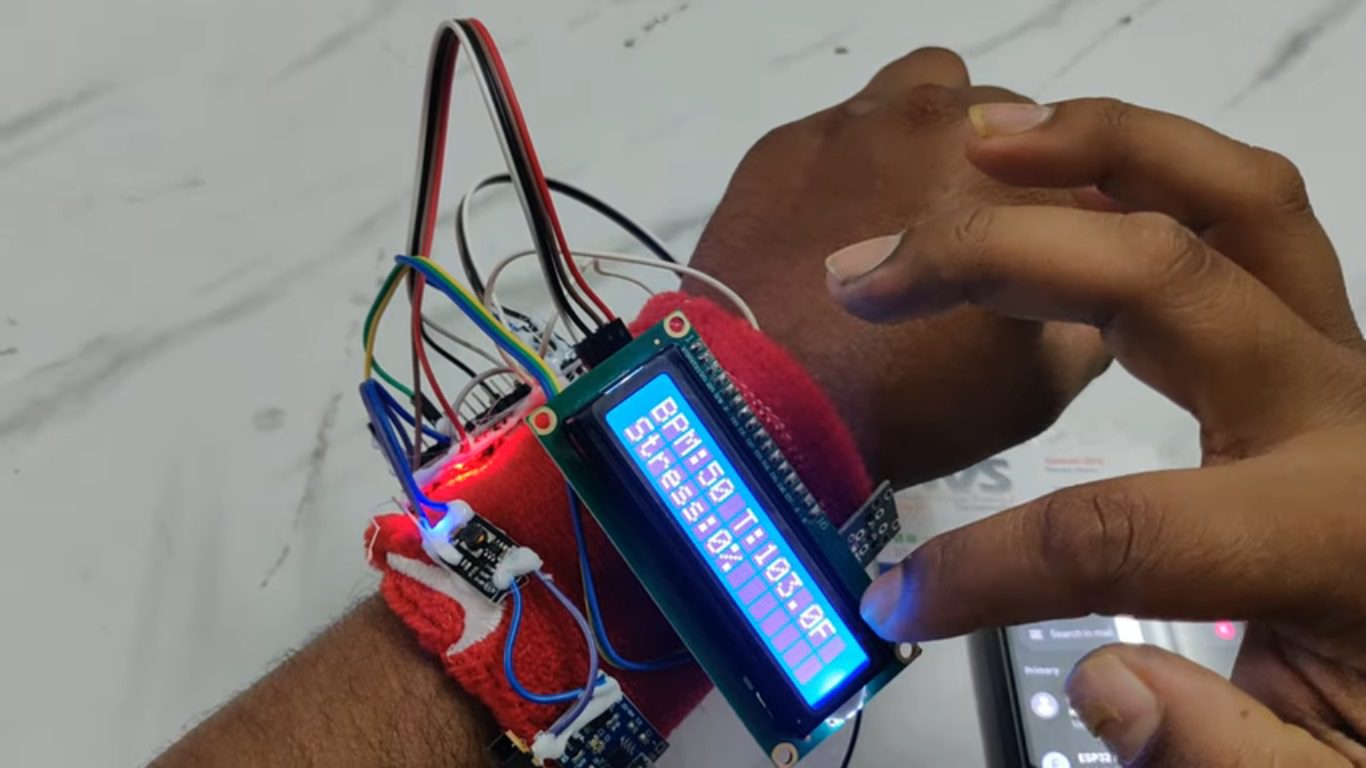

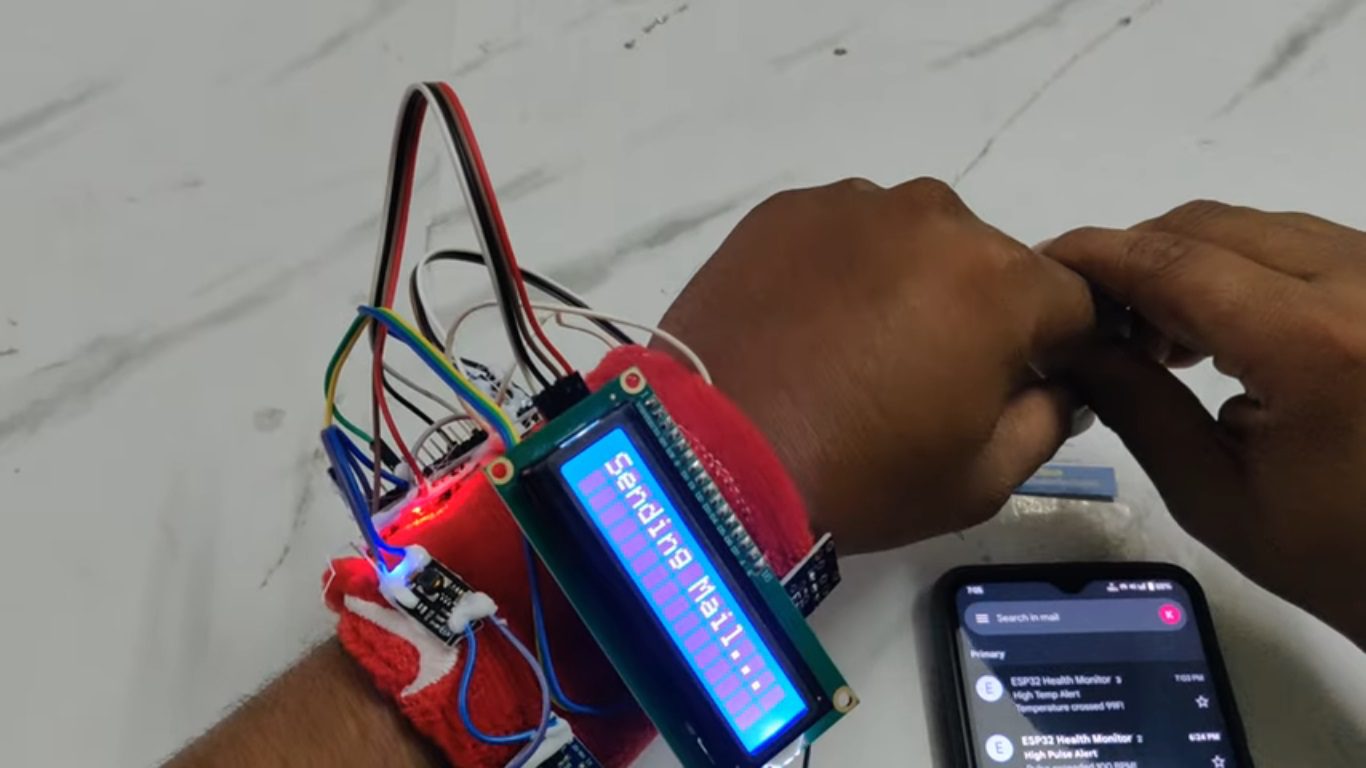

Working from home (WFH) online during the covid-19 pandemic has caused increased stress level. Online workers/students have been affecting by the crisis according to new researches. Natural response of body, to external and internal stimuli is stress. Even though stress is a natural occurrence, prolonged exposure while working Online to stressors can lead to serious health problems if any action will not be applied to control it. Our research has been conducted deeply to identify the best parameters, which have connection with stress level of online workers. The main aim of the project is to design a IoT-based stress analysis system using esp32 and sensors. The main controlling device of the project is ESP32. GSR, Heartbeat sensor, temperature sensor and LCD display is interfaced to the esp32 module. We will design a wearable device. All these components are fixed on wrist belt which is used to monitor the stress using sensors. ESP32 module has inbuilt WI-FI so, it will continuously read the data from sensors will be display on LCD and also it will send the alert mail in abnormal conditions.

 The objectives of the project include:

• Monitoring heart rate, temperature using sensors.
• Galvanic Skin Response (GSR) measuring unit of surface resistance skin or conductivity.
• Abnormal condition alerts in the form of Gmail.
• Using esp32 module to achieve this task.

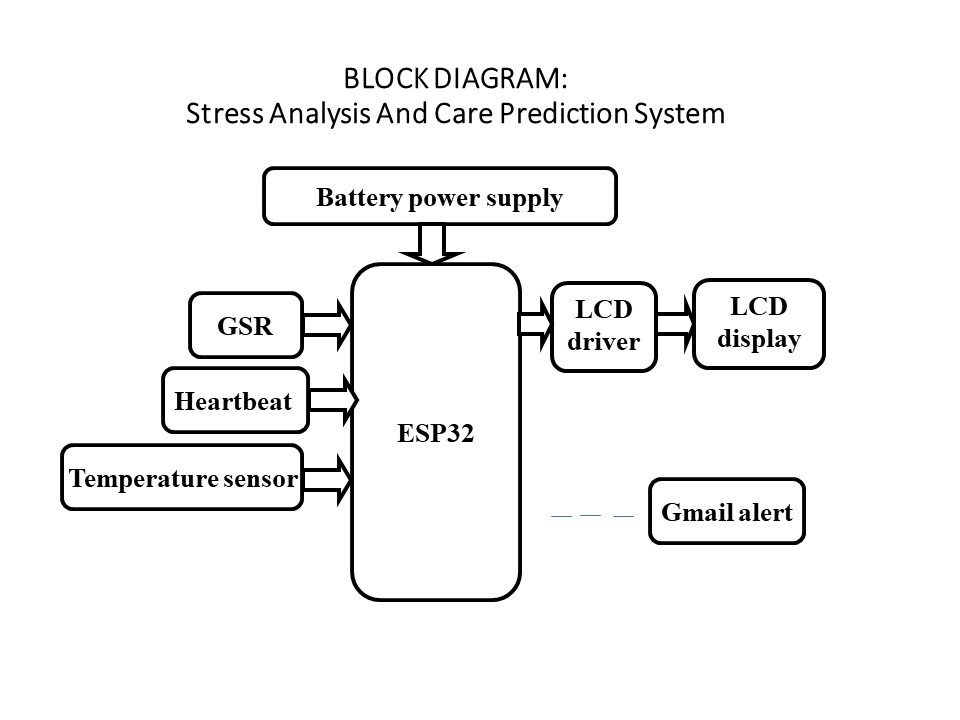

  The main building blocks of the project are:

• 3.7v li-ion Battery.
• Booster Module.
• TP4056.
• ESP32.
• Heartbeat sensor.
• Temperature sensor.
• GSR sensor.
• LCD display.
• Wrist Glove.

  Software’s used:

• Arduino IDE studio compiler to write the program.
• Express SCH for Circuit design.
