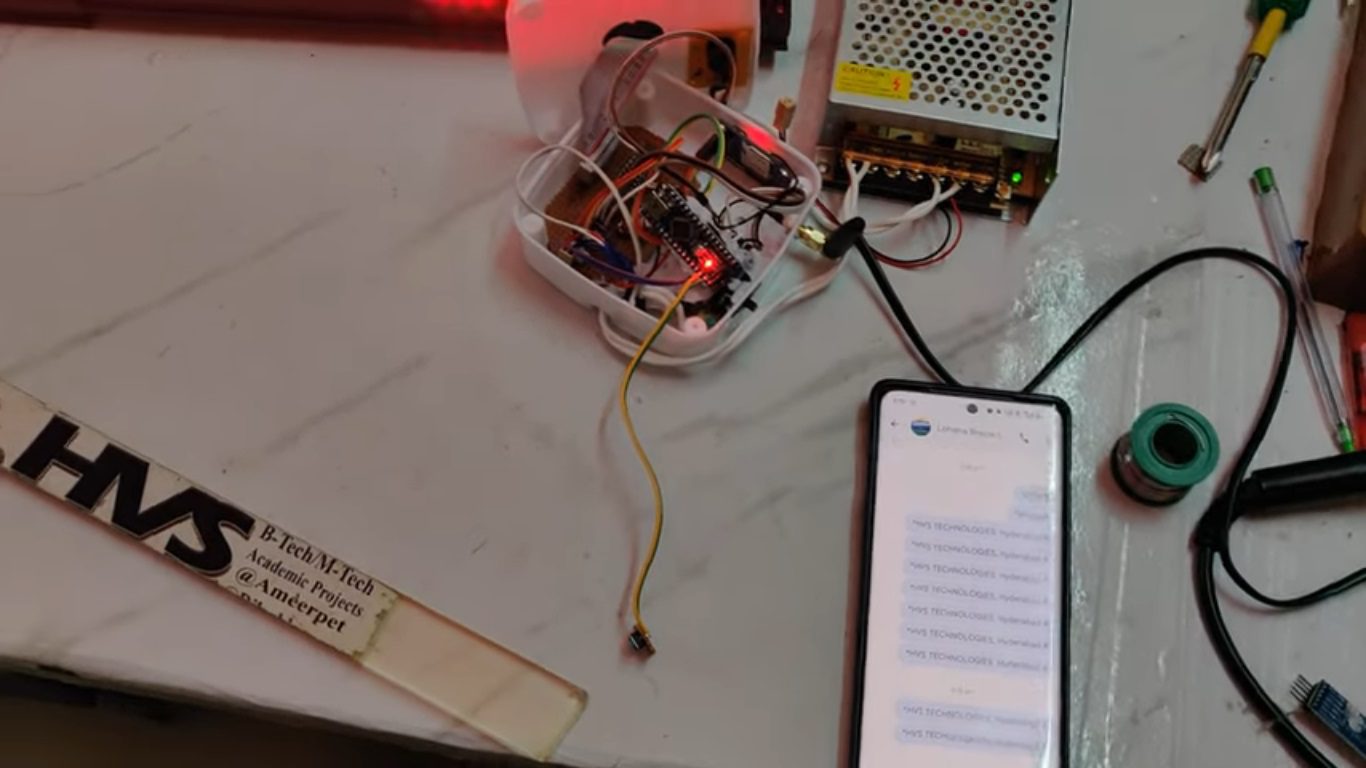

The project aims in designing a digital notice board with display on LED SCROLLING BOARD using a GSM modem. We can access the information directly on LED scrolling board monitor instead of getting it from the notice board. We can implement this technology in schools, colleges, banks etc… After accessing every message, it automatically resets and it displays the latest message on LED scrolling board. This project consists of an onboard computer, which consists of number of input and output ports. These onboard computers are commonly termed as micro controllers. The input and output port of the controller are interfaced with different input and output modules depending on the requirements. In other words, micro controller acts as a communication medium for all the modules involved in the project.   In this project we make use of a LED scrolling board, GSM Modem, and Micro Controller.  User can send the SMS messages to the modem that is connected to the Microcontroller based control system. The microcontroller automatically reads the message that is stored in SIM card and displays on LED Scrolling notice board.  This process continues for every new message we send to it. The previous message will be automatically overridden by new message. A buzzer alert is given for every new message displayed on Led notice board.

Features:

1. Messages can be sent from anywhere in the world.
2. GSM based communication is simple to operate.
3. Low power consumption.
4. Buzzer alert for every new message.

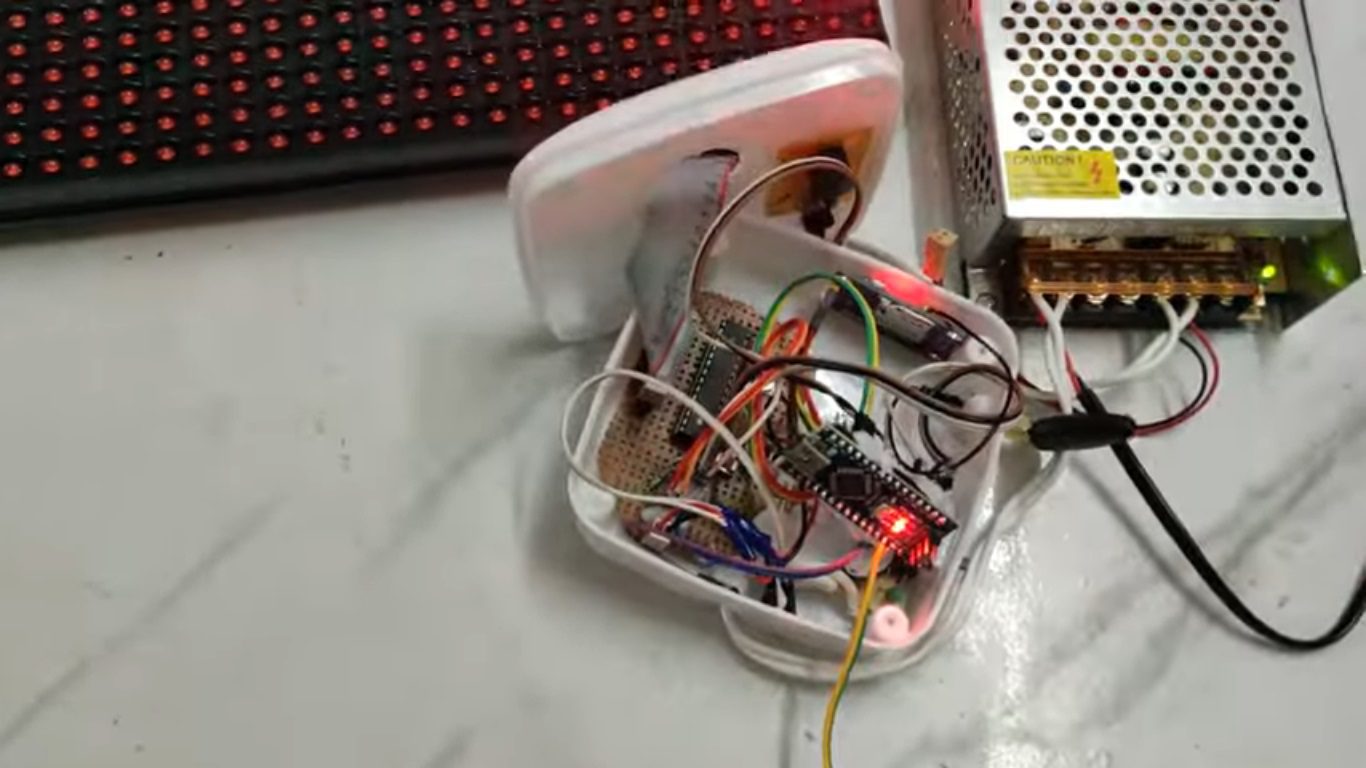

  The major building blocks of this project are:

1. Regulated power supply
2. ARDUINO NANO & ATMEGA328P Microcontroller
3. Buzzer with driver.

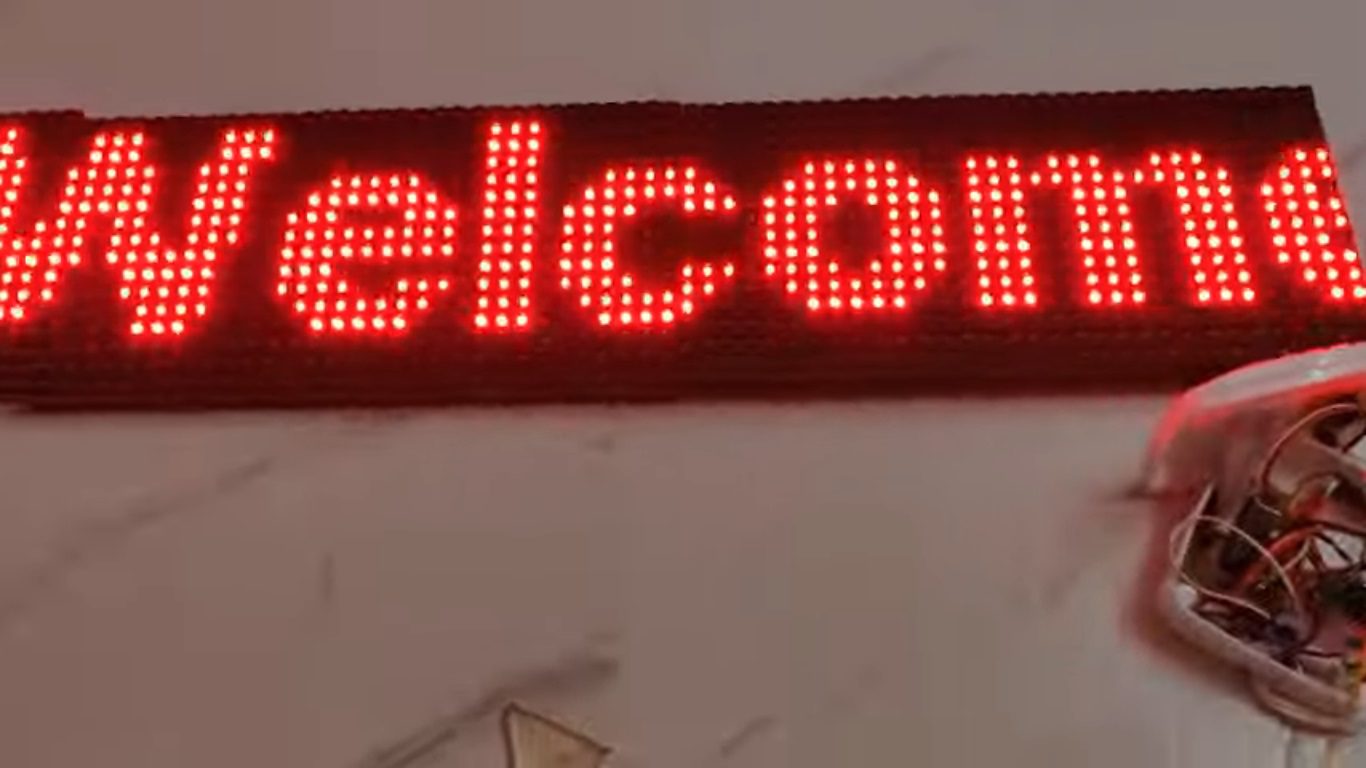

4. P10 LED display with driver.
5. SMPS.
6. GSM Modem.

  Software’s used:

1. Arduino IDE compiler for Embedded C programming.
2. Express SCH for Circuit design.



Regulated Power Supply:

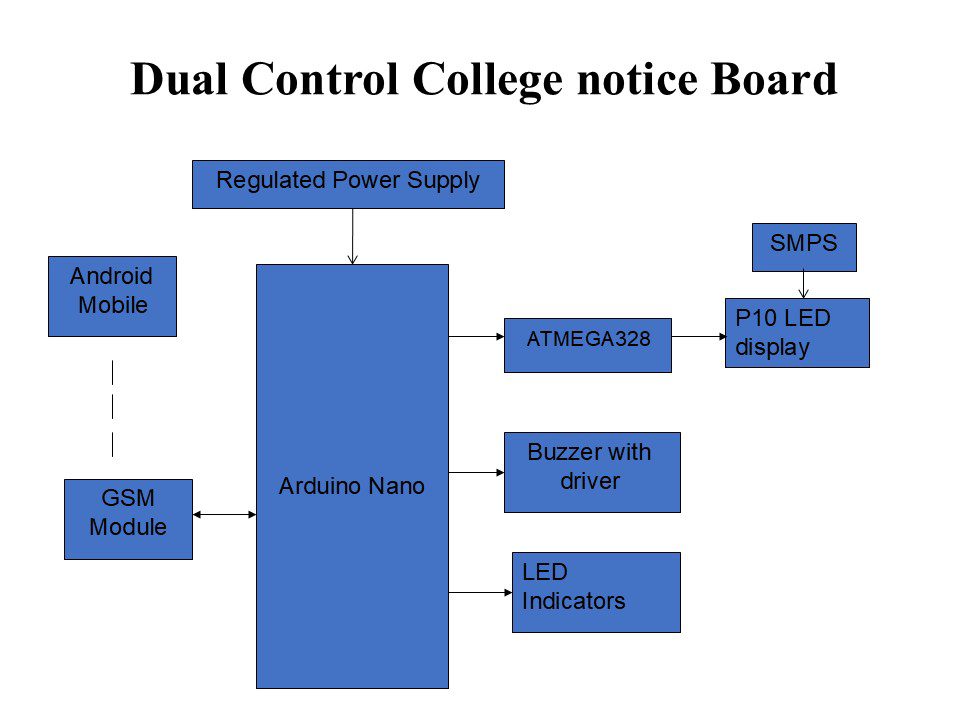

Block Diagram:
