The use of green energy is becoming increasingly more important in today’s world. Therefore, electric vehicles are currently the best choice for the environment in terms of public and personal transportation. Because of its high energy and current density, lithium-ion batteries are widely used in electric vehicles. Unfortunately, lithium-ion batteries can be dangerous if they are not operated within their Safety Operation Area (SOA). Therefore, a IOT battery management system (BMS) must be used in every lithium-ion battery, especially for those used in electric vehicles.   In this work, the purpose, functions and topologies of BMS are discussed in detail. In addition, early battery models along with the hardware and system designs for BMS are covered in a literature review. Then, an improved battery model is introduced, and simulation results are shown to verify the model’s performance. Finally, the design of a novel BMS hardware system and its experimental results are discussed. The possible improvements for the battery models and BMS hardware are given in the section on conclusions and future work. The controlling device of the whole system is a MICROCONTROLLER. The integrated modules to the controller are ESP8266 WI-FI module, temperature sensor, Battery packs along with relays, Charger, DC Fan and LCD Module. When any of the battery pack get drained, that battery pack get charged from the charger through relay and the voltage values of each battery pack data is displayed on LCD module as well as it displays the temperature continuously. If the temperature value crosses the set limit, then PIC microcontroller will active the buzzer for alerts and switch on the cooling fan for battery protection. The microcontroller will be sending the battery packs data into the thingspek cloud through esp8266 wi-fi module. The Microcontroller measures the voltage from sensors and based on that it will switch on the relays for battery charging. Here relay works as a switch to on/off the charging connection. This system monitoring cells’ states, at a particular point in time, is often needed in battery development in order to optimize their use. State-of-Charge (SoC) are key quality indicators as they provide very useful data needed for the optimization of the Battery Management System (BMS).

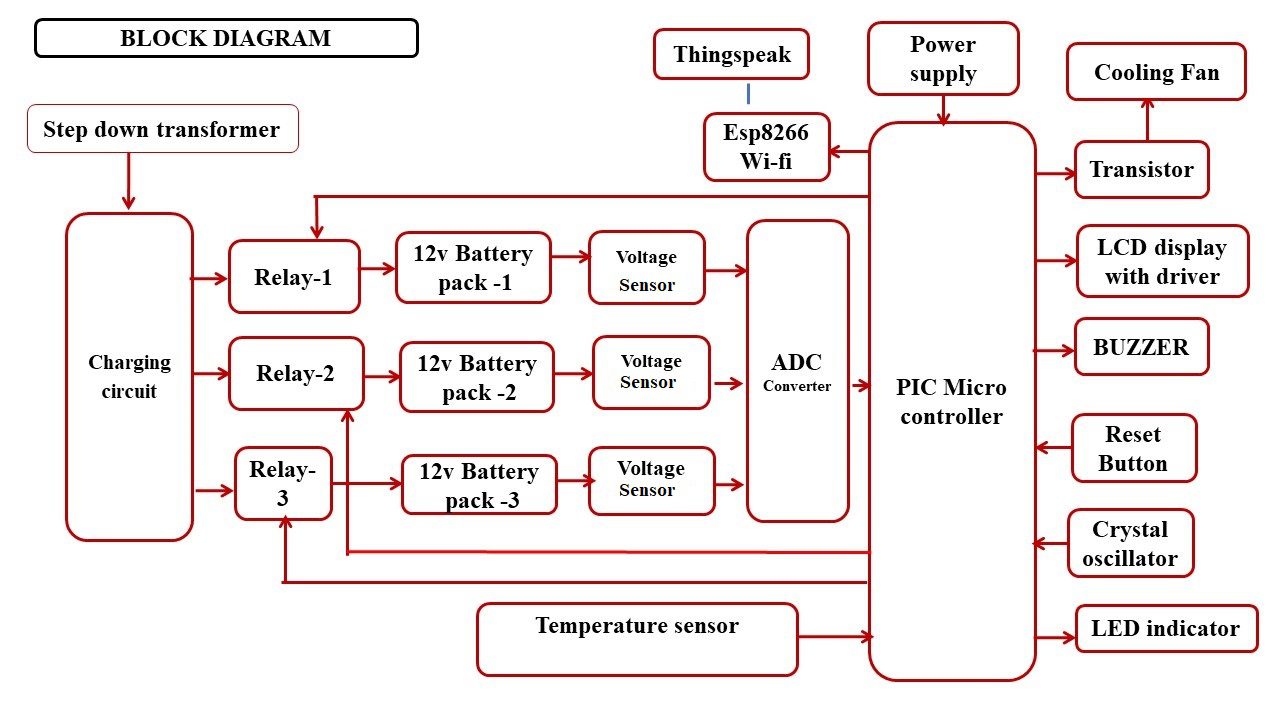

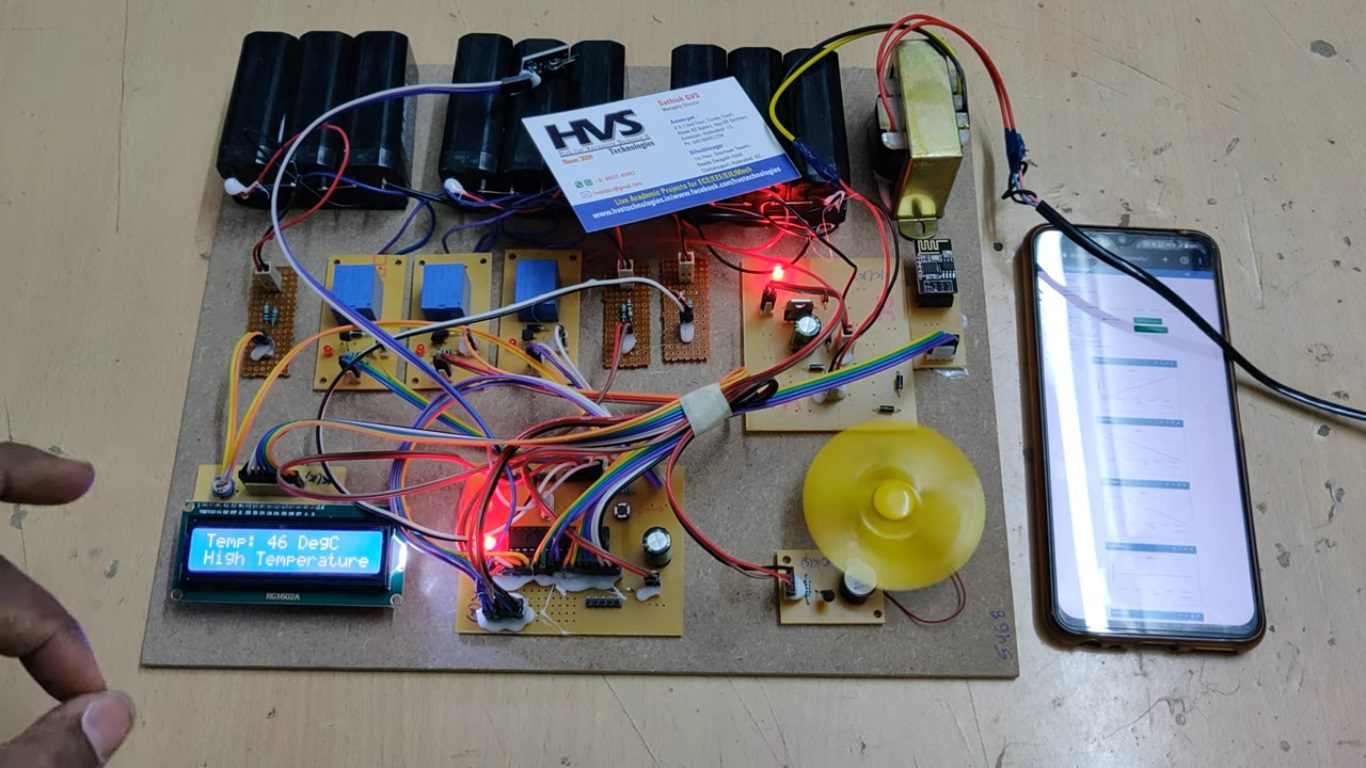

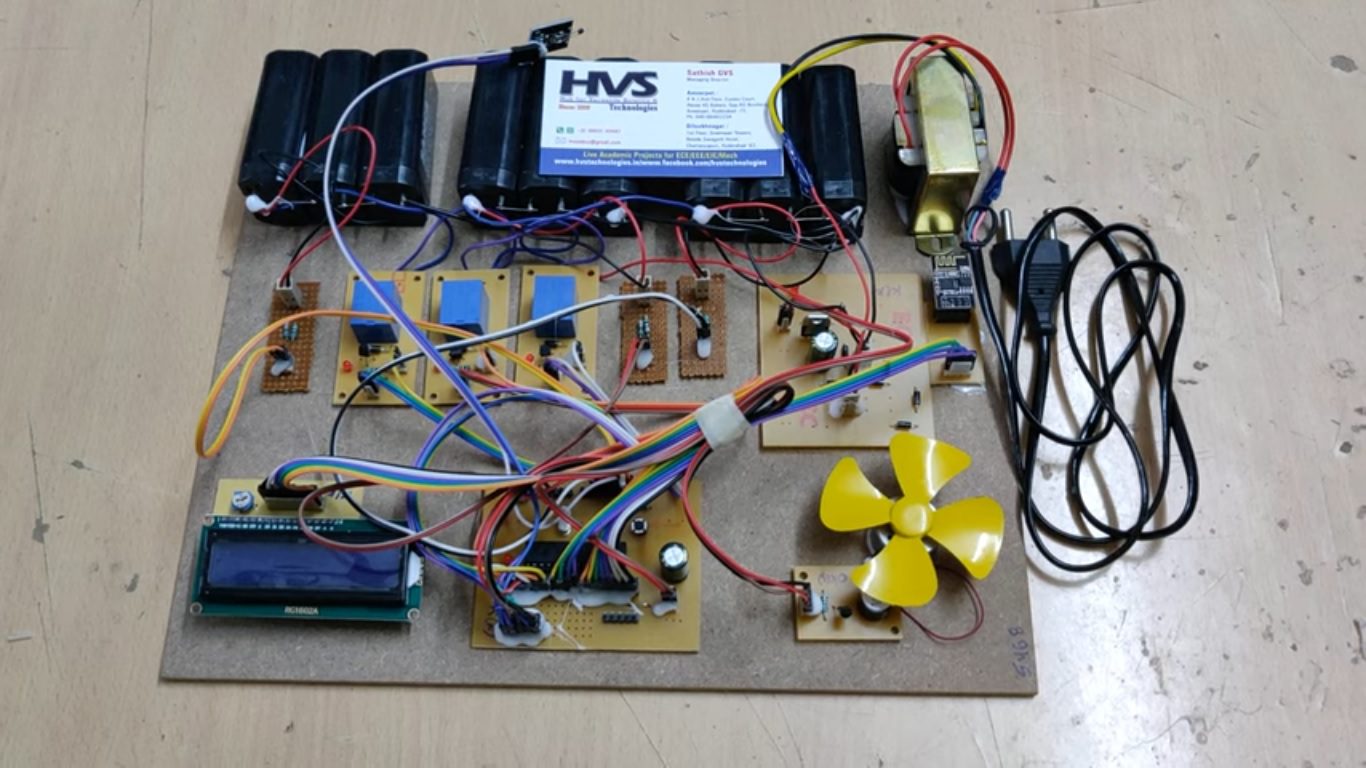

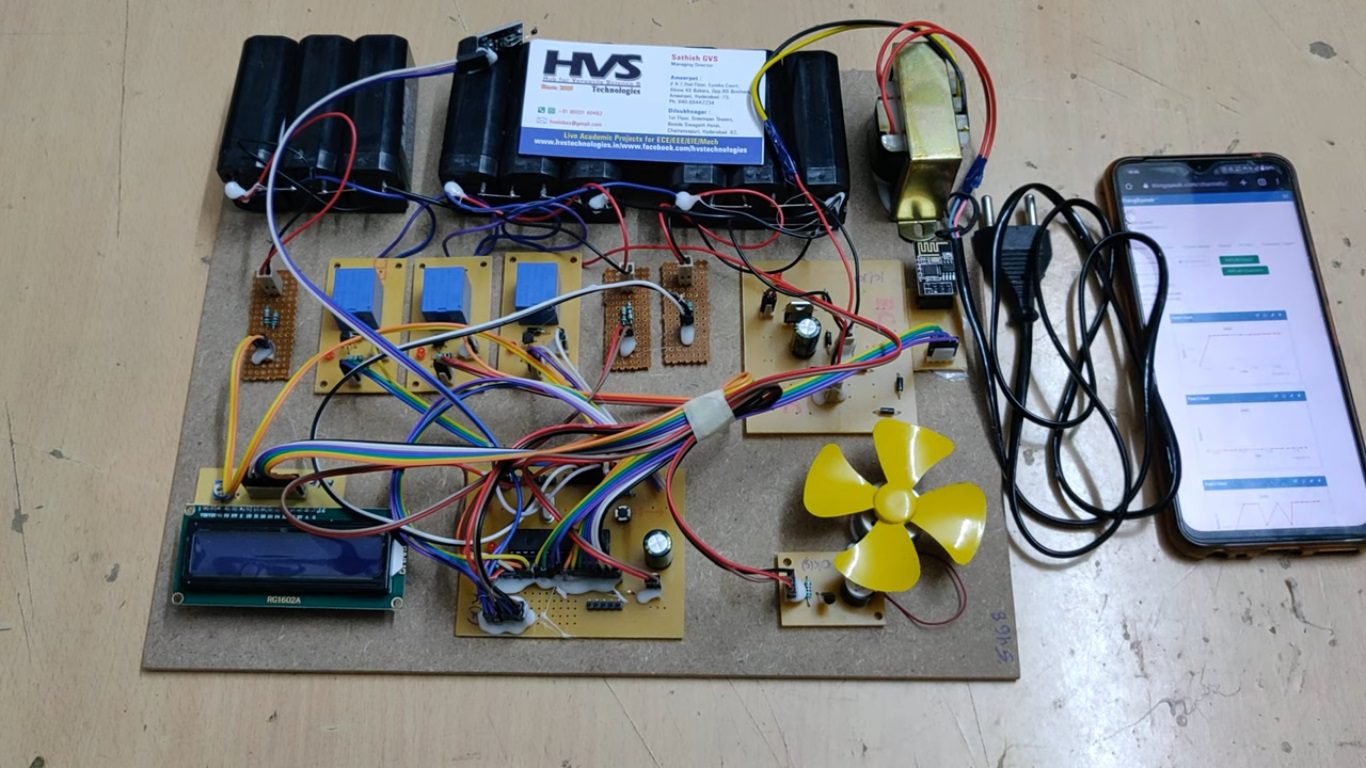

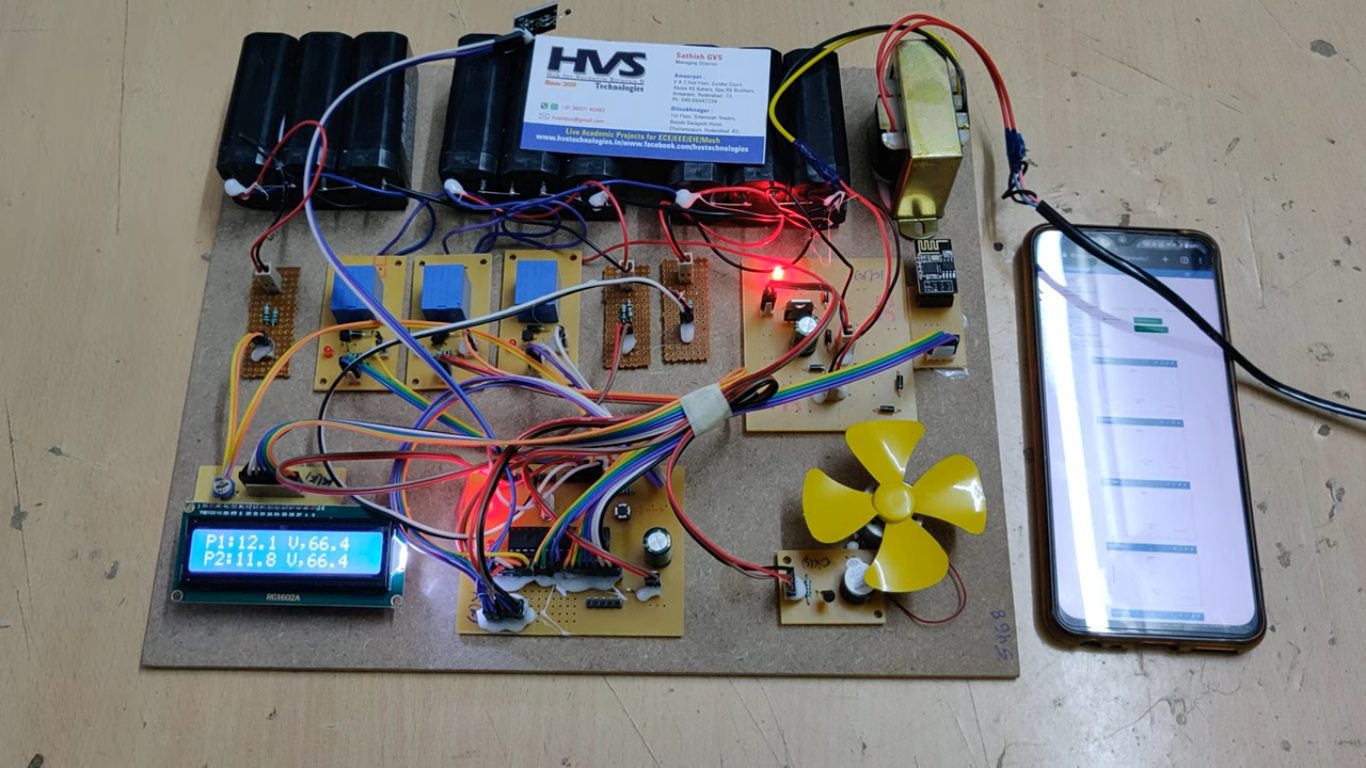

The major building blocks of this project are:

• Regulated power supply
• PIC Microcontroller.
• ESP8266 WI-FI module.
• Temperature sensor.
• Voltage sensor.
• Buzzer.
• Three battery packs
• Three Relays.
• Charging Circuit.
• LCD display.
• LED Indicators
• Crystal oscillator
• Reset button.
• Cooling fan.

  Software’s used:

• PIC-C compiler for Embedded C programming.
• PIC kit 2 programmer for dumping code into Micro controller.
• Express SCH for Circuit design.
• Thingspeak cloud.
