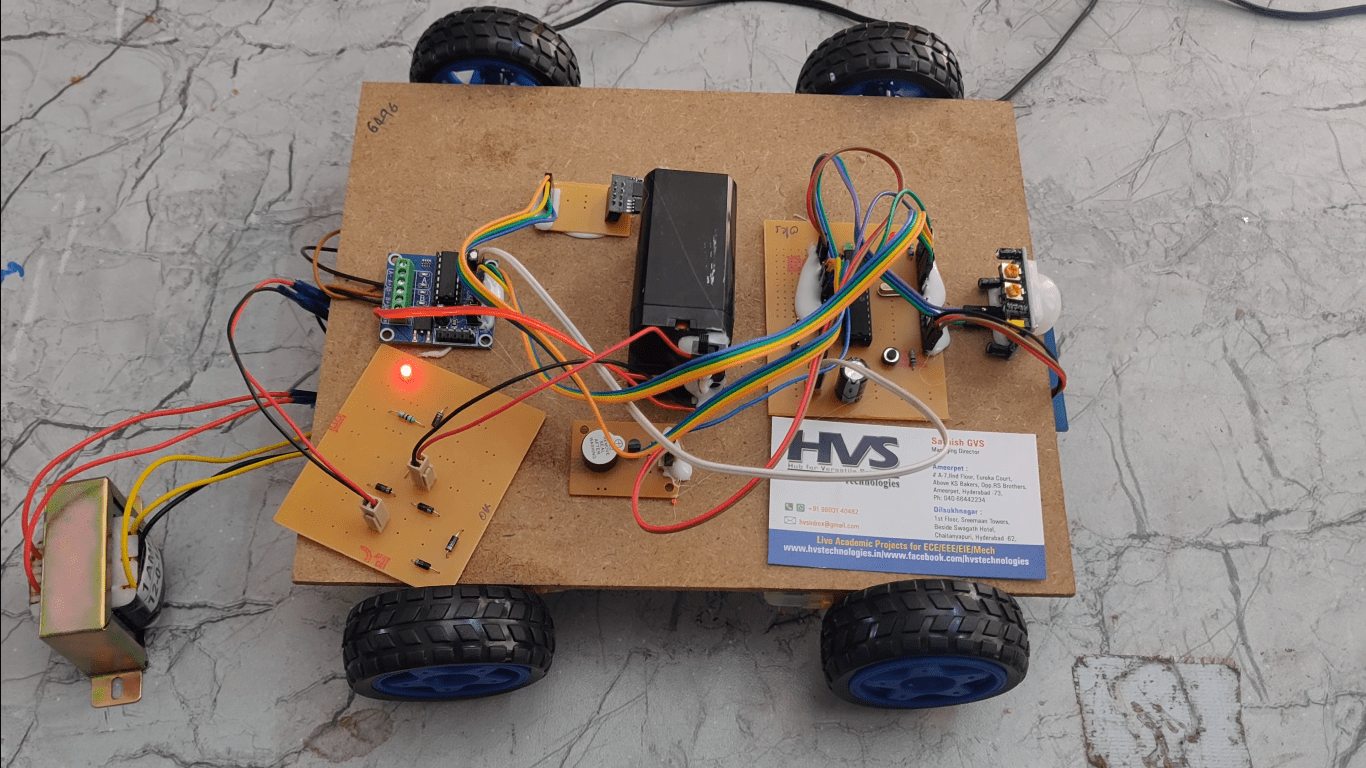

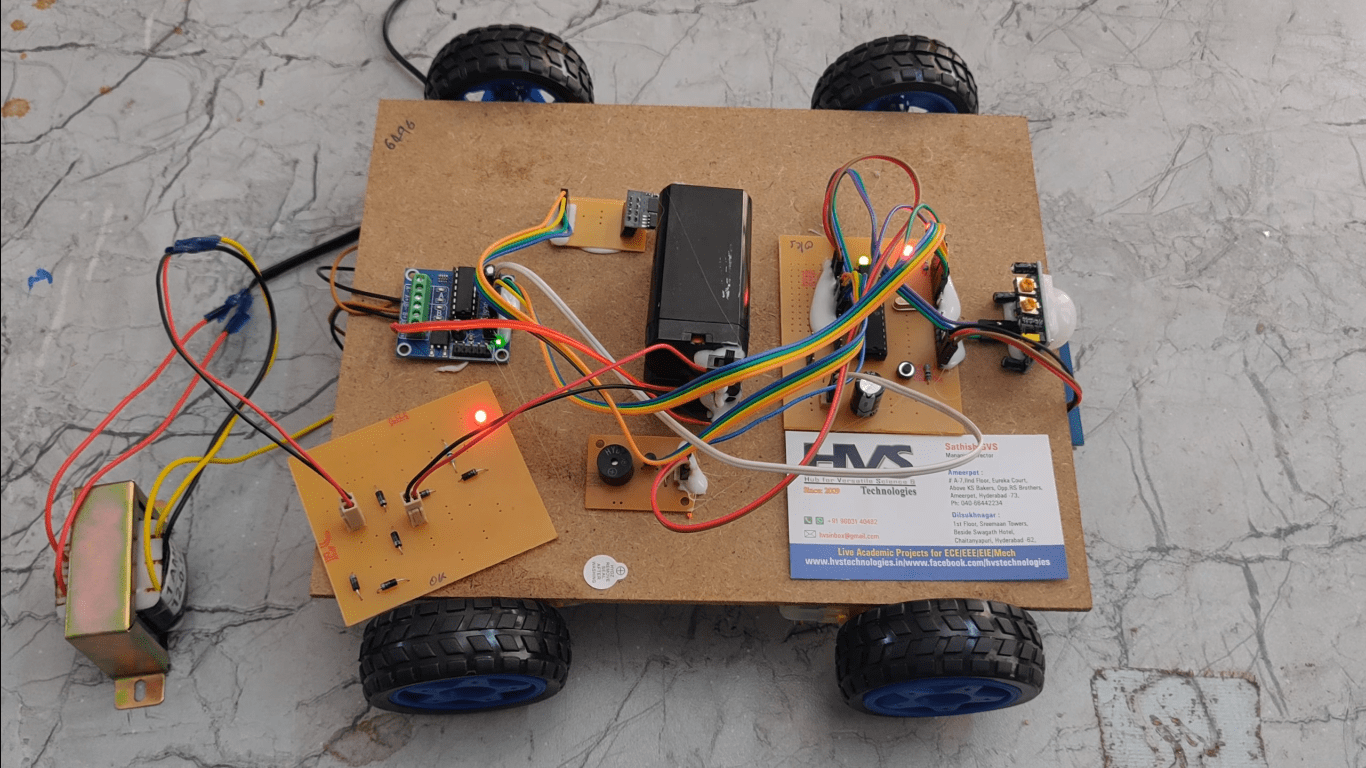

HVS-4562. Live Human being detection WI-FI controlled Robot with Metal sensor.
HVS-4562. Live Human being detection WI-FI controlled Robot with Metal sensor.
HVS-4562. Live Human being detection WI-FI controlled Robot with Metal sensor.

HVS-4562. Live Human being detection WI-FI controlled Robot with Metal sensor.

₹5,500.00

The main aim of this project is to design a wi-fi controlled robot which can detect the bombs and human. As it is a wireless Robot it can be easily mobilized and can be controlled. This can be used to detect terrorists/thief inside the building and also it can be used to detect the landmines.

Categories , ,  Tags ,
The main aim of this project is to design a wi-fi controlled robot which can detect the bombs and human. As it is a wireless Robot it can be easily mobilized and can be controlled. This can be used to detect terrorists/thief inside the building and also it can be used to detect the landmines. This project makes a use of PIC micro controller, which is programmed to control the input and output modules interfaced to it. PIR SENSOR is uses to detect the live human being. Metal detector is uses to detects the bomb. Buzzer is uses to gives the alarm if the robot detects the human or bomb. Esp8266 wi-fi module is uses to control the robot wireless via IOT. DC motors along with motor driver is uses to moves the robot. The controlling device of the whole system is a Microcontroller to which ESP8266 Wi-Fi module, PIR sensor, Buzzer, metal detector sensor, and DC motors are interfaced. We can control the robot using smart phone through Wi-Fi. Whenever, user sending a command from smart phone this data is received the Wi-Fi module which is connected to the microcontroller. The Microcontroller processes this data and acts accordingly on Robot motors. If the robot detects the human presence or Bomb, it can alert the persons through Buzzer. The Microcontroller is programmed using Embedded C language.



The main objectives of this project are:
  1. Design of real time robot.
  2. Wi-Fi control of robot directions and movement.
  3. Real time human and bomb detection.
  4. Human and bomb detection alert using Buzzer.
The learning’s provided by the project are:
  1. IOT communication.
  2. Interfacing WI-FI module to Microcontroller.
  3. Characteristics of PIR sensor.
  4. Interfacing PIR with controller.
  5. Interfacing metal detector with microcontroller.
  6. DC motor working and need for motor driver.
  7. Embedded C programming.
  8. PCB design concepts.
The major building blocks of this project are:
  1. Battery Power supply.
  2. ESP8266 Wi-Fi module.
  3. PIC Microcontroller.
  4. PIR Module.
  5. Metal detector.
  6. Reset Button.
  7. DC Motors with driver.
  8. Buzzer with driver.
  9. Crystal
  10. LED Indicators.
Software’s used:
  1. PIC-C compiler for Embedded C programming.
  2. PIC kit 2 programmer for dumping code into Micro controller.
  3. Express SCH for Circuit design.

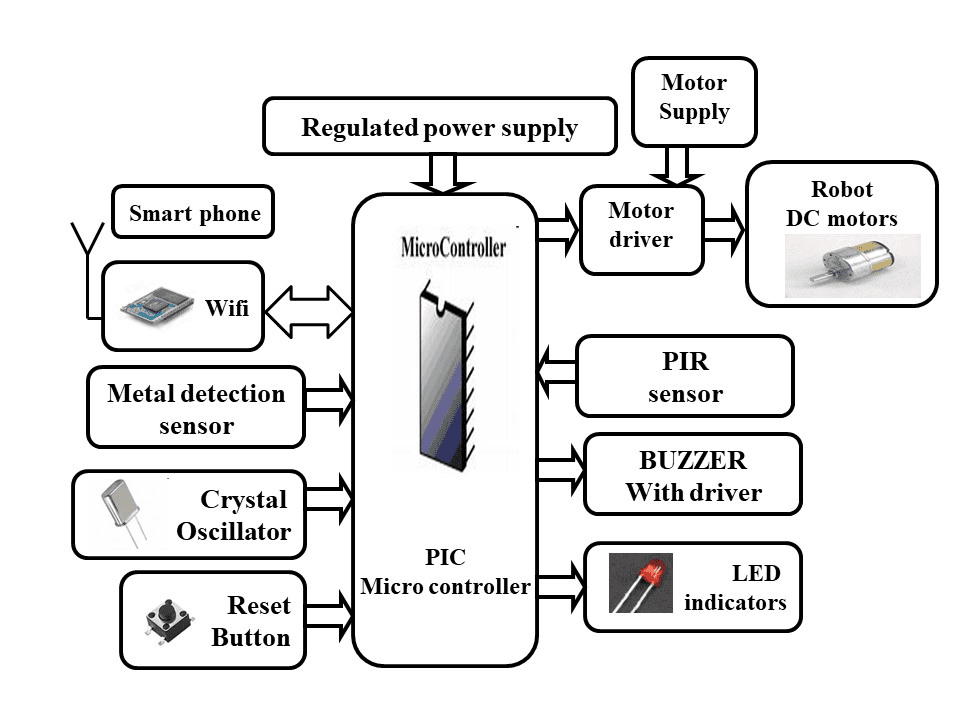

Block diagram:







video:
