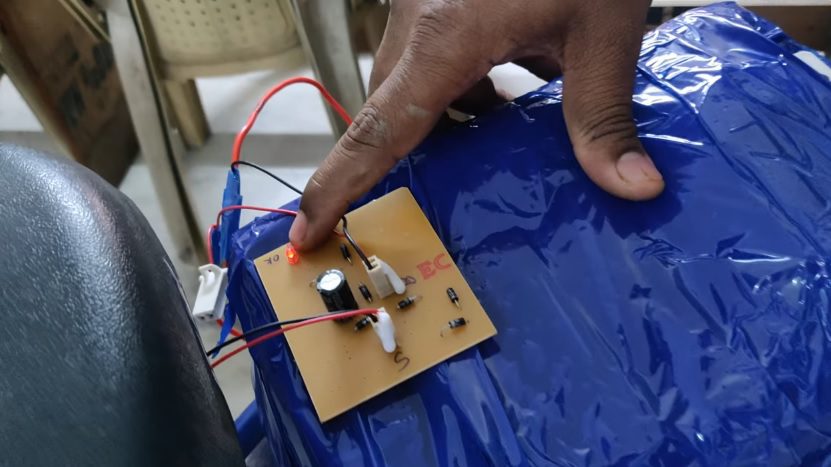

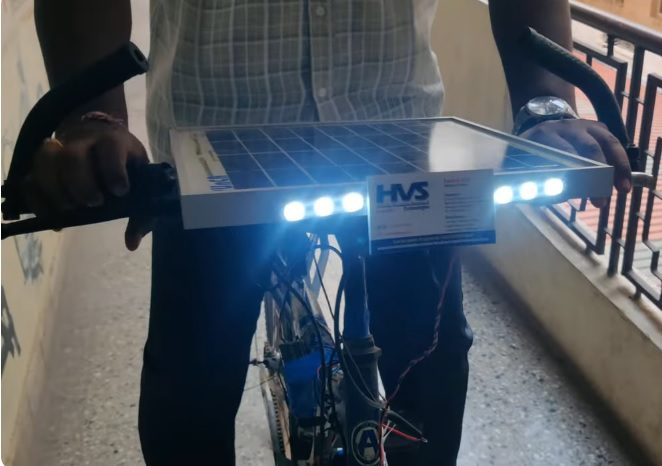

The main aim of this project is to design and fabricate an e-Bicycle with renewable energy source solar. E-bicycle can work with battery power and mechanically pedal power and also it consists of head light which is used at night time controlled by the user through button. Electric motorcycles and Bicycles are plug-in electric vehicles with two or three wheels powered by electricity. The electricity is stored on board in a rechargeable battery, which drives one or more electric motors. Electric Bicycles (as distinct from motorcycles) have a step-through frame. All electric Bicycles and motorcycles provide for recharging by plugging into ordinary wall outlets, usually taking about eight hours to recharge (i.e. overnight). Electric and gasoline powered motorcycles and Bicycles of the same size and weight are roughly comparable in performance. The E-Bicycle model requires a hub motor, throttle accelerator, gate for brakes and batteries along with solar panel-based charging circuit model. The system also uses solar energy to charge the battery. In this project we are using solar panel, Reverse polarity preventer cum polarity corrector, AC ripples neutralizer, unidirectional current controller and a rechargeable battery which has high charge storing capability and long durability.           The objectives of the project are:

1. Utilization of free available source of energy from sun.
2. Storage of energy into rechargeable battery.
3. Stored energy is used for running hub motor.
4. It consists of Headlight.
5. Design an E-bicycle which can works with battery power and pedal power.

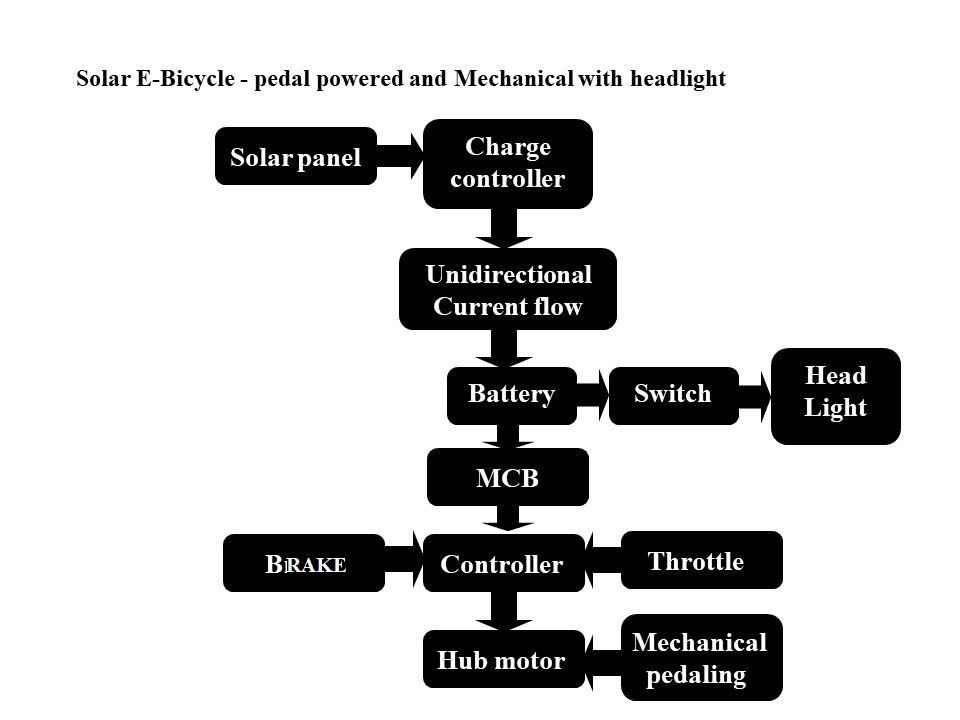

          The major building blocks of the project are:

• Solar panel.
• Charging Circuit.
• Rechargeable Battery.
• Controller.
• Hub motor.
• Throttle.
• Brake.
• Head light.
