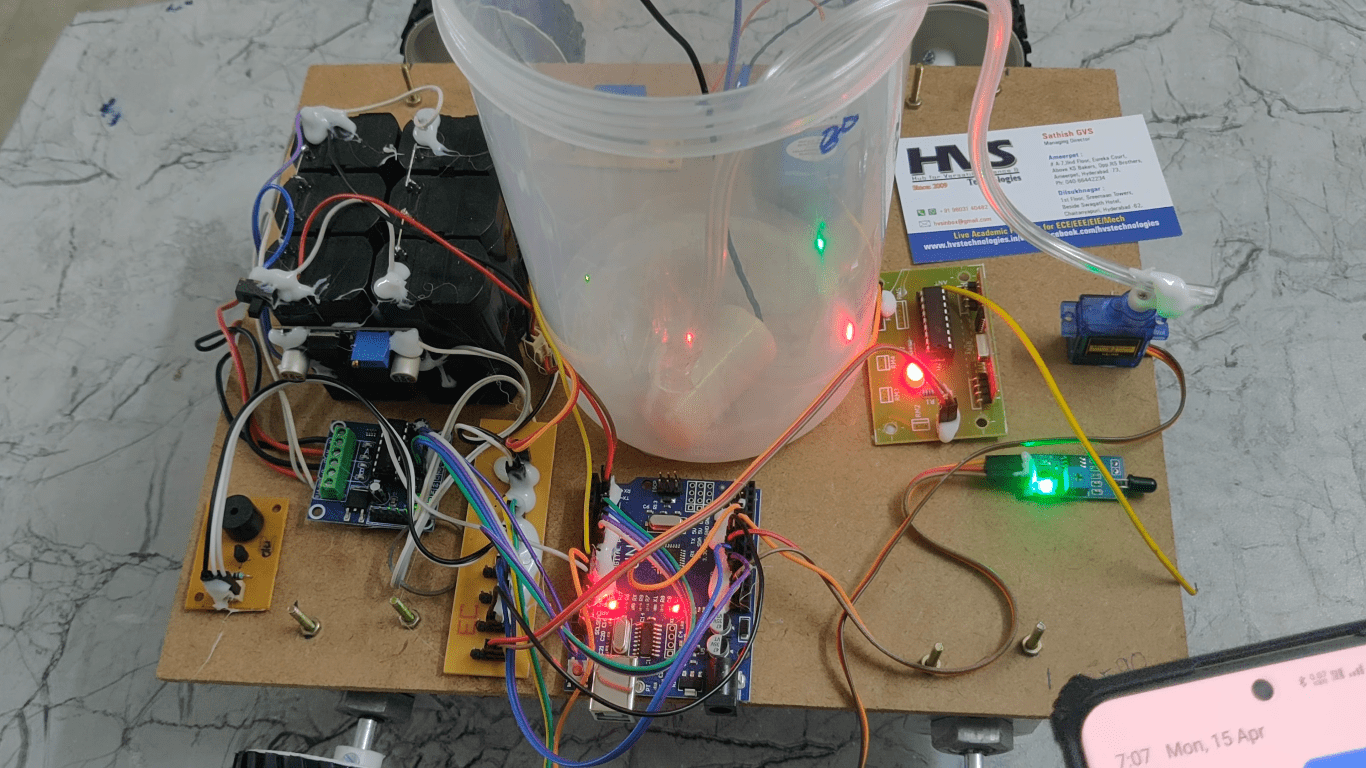

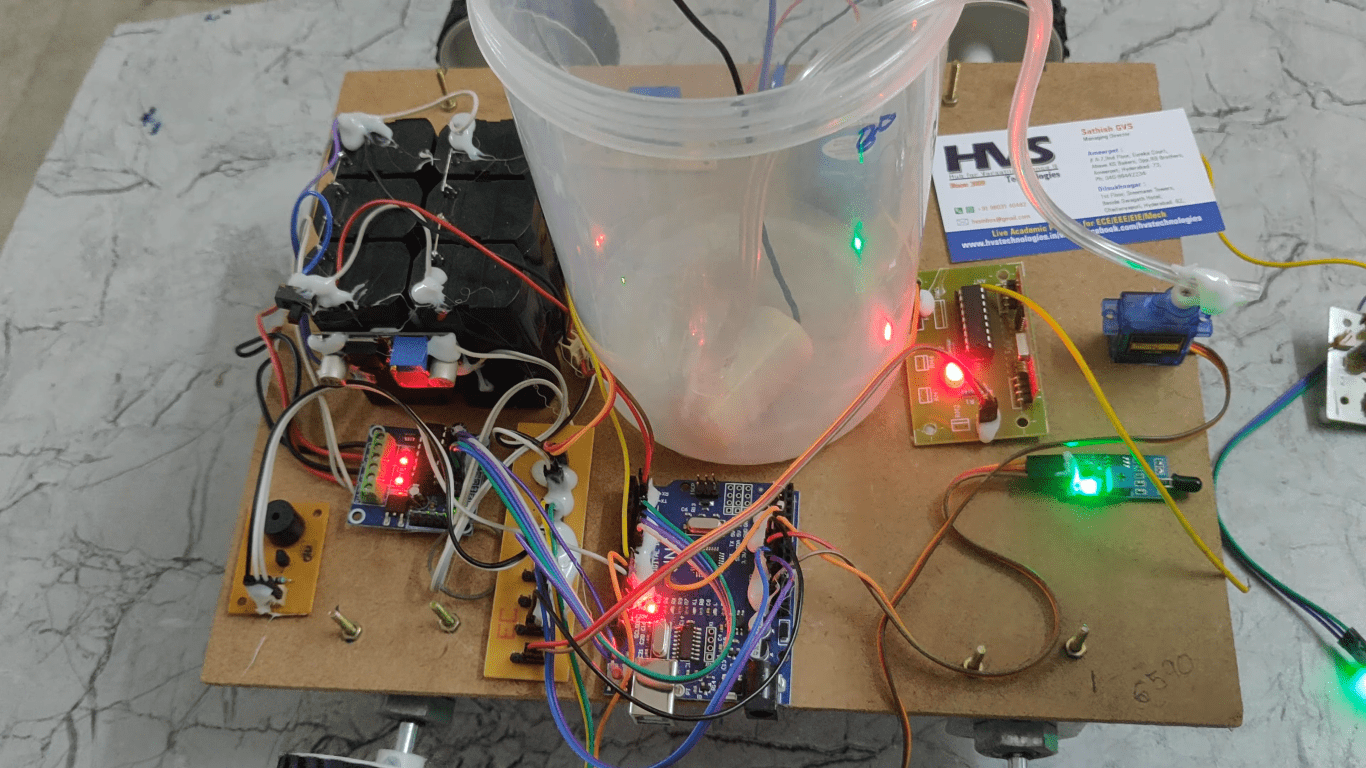

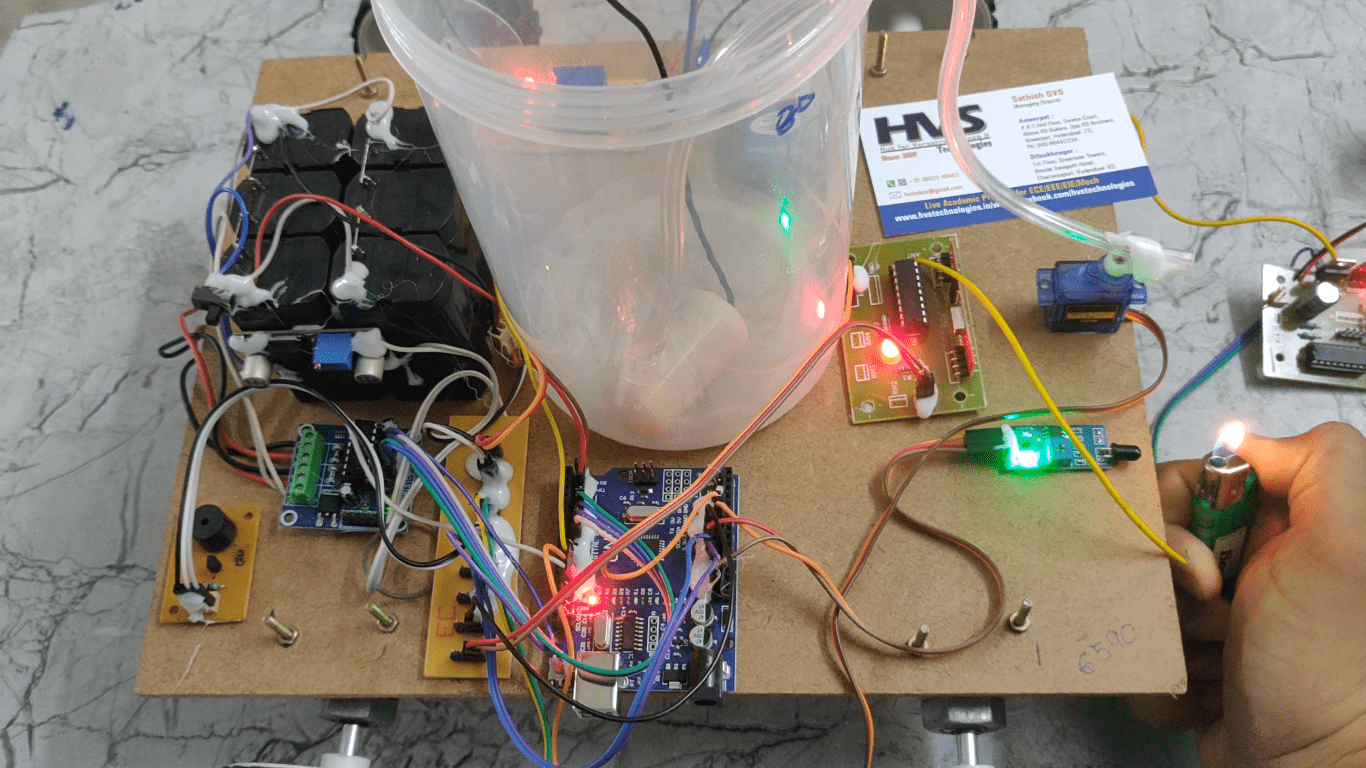

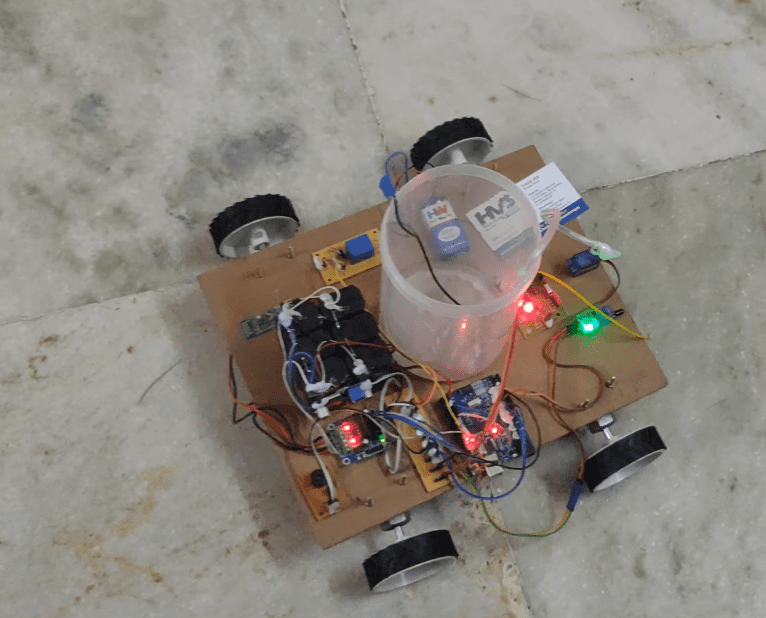

The main aim of this project is to build a fire fighting robot using RF and Bluetooth. The Robot can be moved in all the four directions (front, back, left and right) through predefined keys.This firefighting robot with contains a fire sensor, RF transmitter and receiver, buzzer, L293D motor driver, DC motors, relay, LM2596, servo motors, and Bluetooth. The robot is designed to autonomously detect and extinguish fires, offering a proactive approach to fire safety. The fire sensor detects fire outbreaks, prompting the relay to on the water motor to suppress flames efficiently. Additionally, the buzzer provides an audible alert to alert nearby individuals. The L293D motor driver enables precise control of the DC motors, facilitating the robot's movement towards the fire source while navigating obstacles. The main purpose of the RF transmitter and receiver in which fire sensor detects the fire and sends the signals to rf transmitter and these rf receiver will receive the fire signals.The rechargeable battery system ensures continuous operation of the robot by converting the 12v battery into 5v using lm2596 module making it suitable for deployment in various environments, including buildings, factories, and forests. The data sent from Android mobile phone over blue tooth will be received by Bluetooth module connected to Arduino Microcontroller. Microcontroller reads the data and decides the direction and operates the DC motors connected to it accordingly. While watching the video user can control the robot through web browser using mobile. This integrated solution offers a versatile and effective means of combating fires across diverse environments, ensuring rapid response and minimal human intervention.



OBJECTIVES

The main objectives for the fire-fighting robot system are as follows:

1. Implemented a fire sensor to detect the presence of fire accurately and promptly.
2. Integrated a buzzer to provide an audible alert.
3. Utilized the L293D motor driver to control the movement of the robot, enabling it to navigate towards the fire source and maneuver around obstacles.
4. The most important objective is RF transmitter and receiver if any fire detected by the fire sensor, it sends the signals to rf transmitter and these rf receiver will receive the fire signals.

          THE MAJOR BUILDING BLOCKS FOR THIS PROJECT:

1. FIRE SENSOR.
2. Arduino uno.
3. Buzzer.
4. Rf.
5. L293d.
6. Dc motors.
7. Battery.
8. Relay.
9. Lm2596.
10. Servo motors.
11. Water motor.
12. Bluetooth.

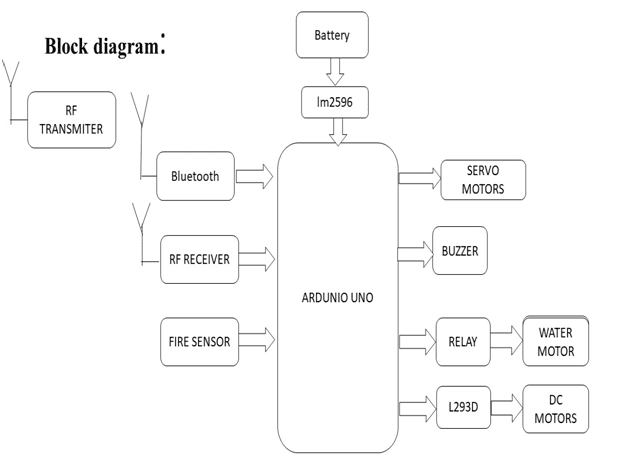

BLOCK DIAGRAM OF FIRE FIGHTING ROBOT USING RF AND BLUETOOTH:
