₹12,500.00

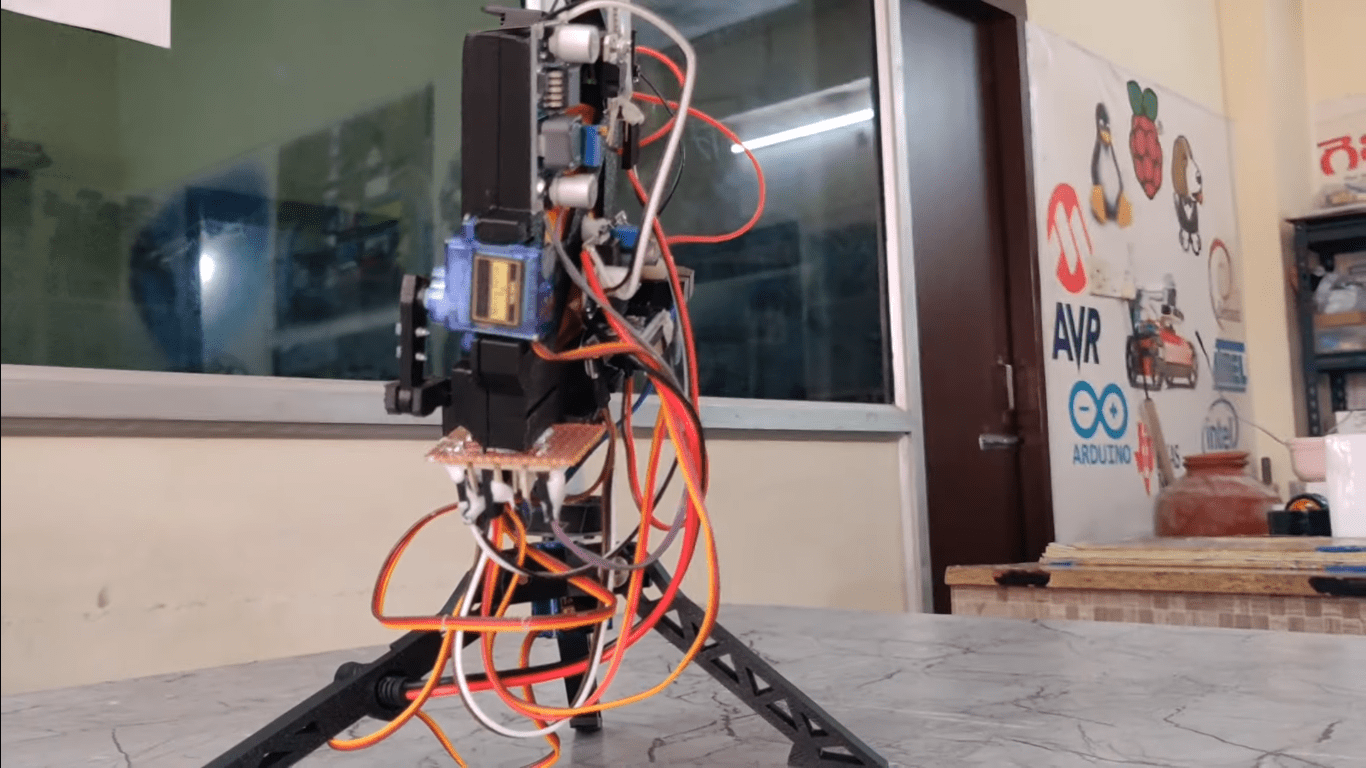

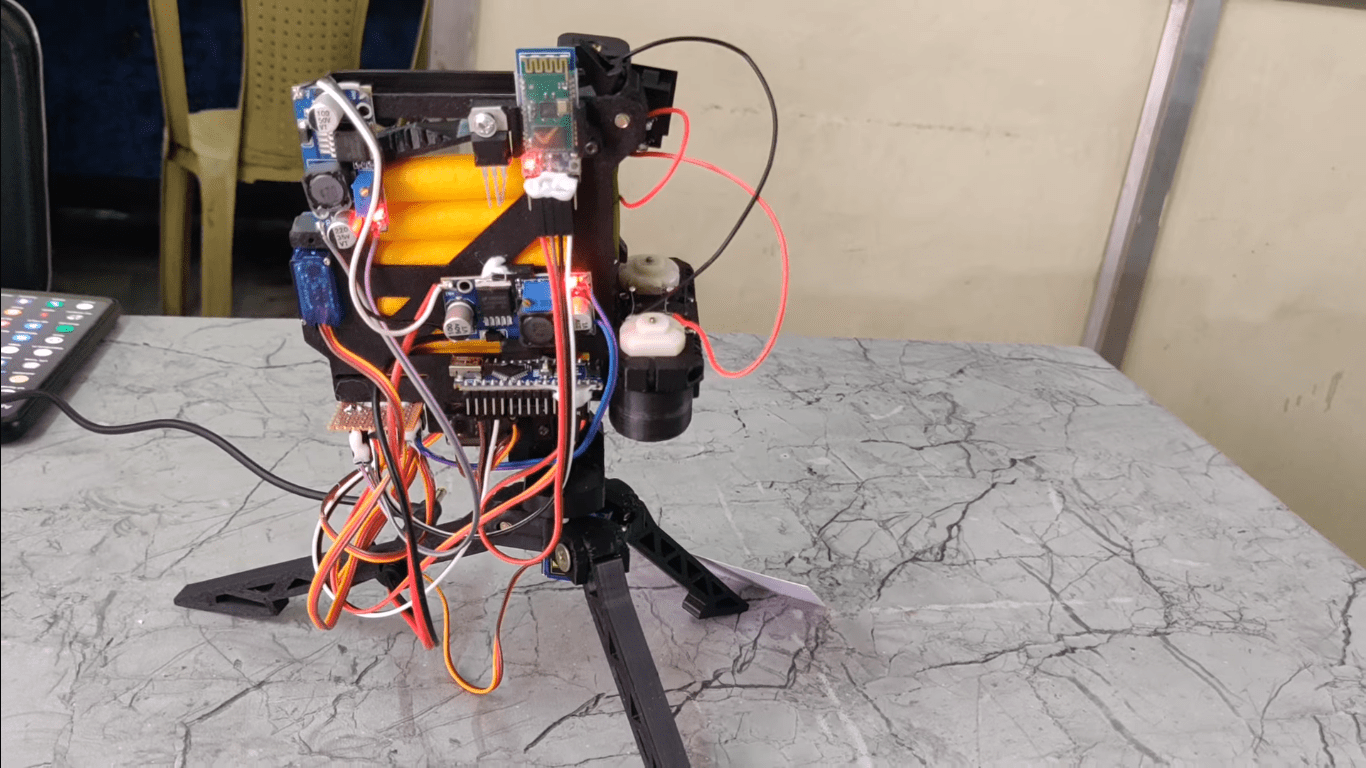

This security-conscious build is a completely 3D-printed Nerf gun turret, controllable by the user over Bluetooth. It uses an Arduino Nano to control two servers (for tilt and pan); two DC motors to fire the darts, and there’s a servo to push the darts into the rollers when the order to fire is given.

Categories ,  Tags ,

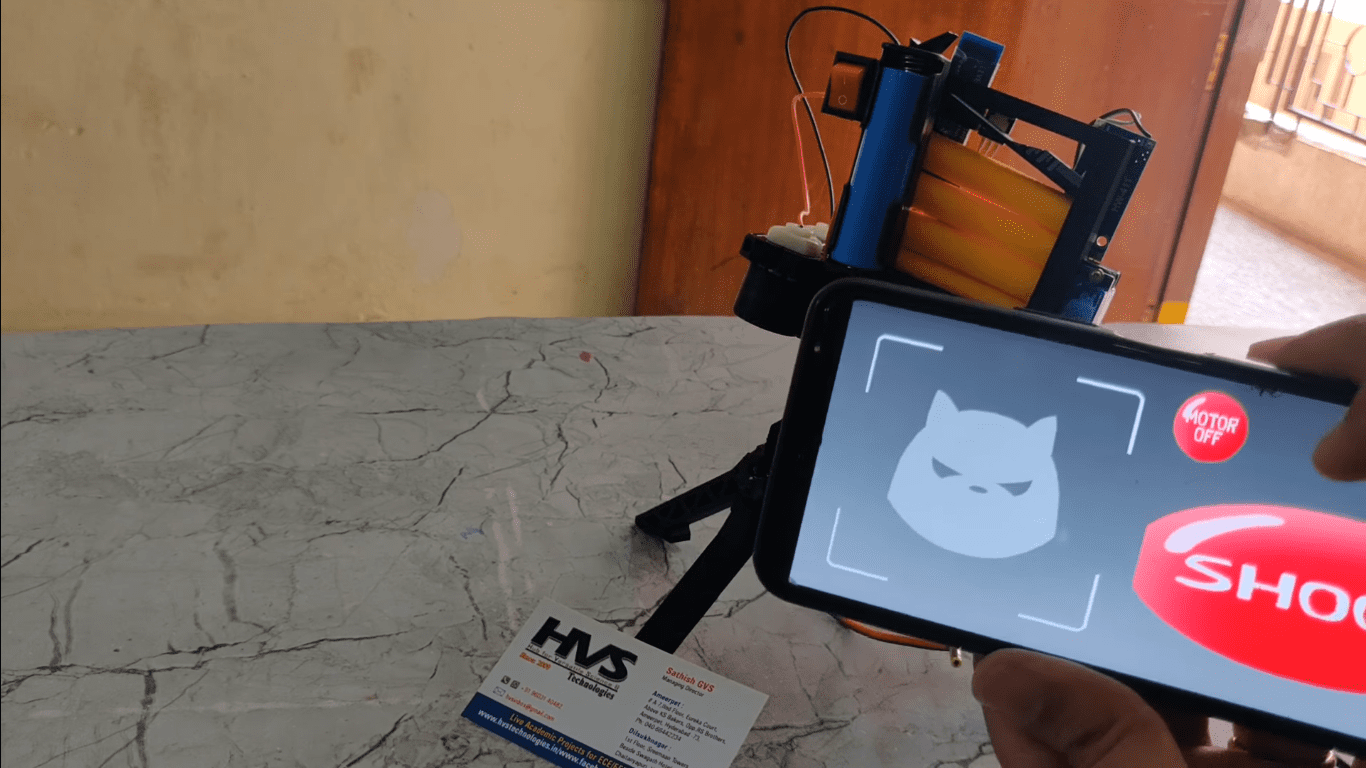

This security-conscious build is a completely 3D-printed Nerf gun turret, controllable by the user over Bluetooth. It uses an Arduino Nano to control two servers (for tilt and pan); two DC motors to fire the darts, and there’s a servo to push the darts into the rollers when the order to fire is given. In this project we are using three servo motors for UP-DOWN, LEFT-RIGHT motion and trigger the fire. Using android mobile and Bluetooth application user can control the gun turret wirelessly. To achieve this task Arduino nano loaded program written in embedded C language.



The major building blocks of this project are:
  1. Adapter power supply.
  2. Arduino Nano.
  3. Two lm2596 buck converter modules.
  4. Battery power.
  5. HC-O5 Bluetooth module.
  6. Three servo motors.
  7. Two DC motors.
    Software’s used in the project:
  1. ARDUINO IDE.
  2. Embedded C language.
  1. Express SCH for Circuit Design.

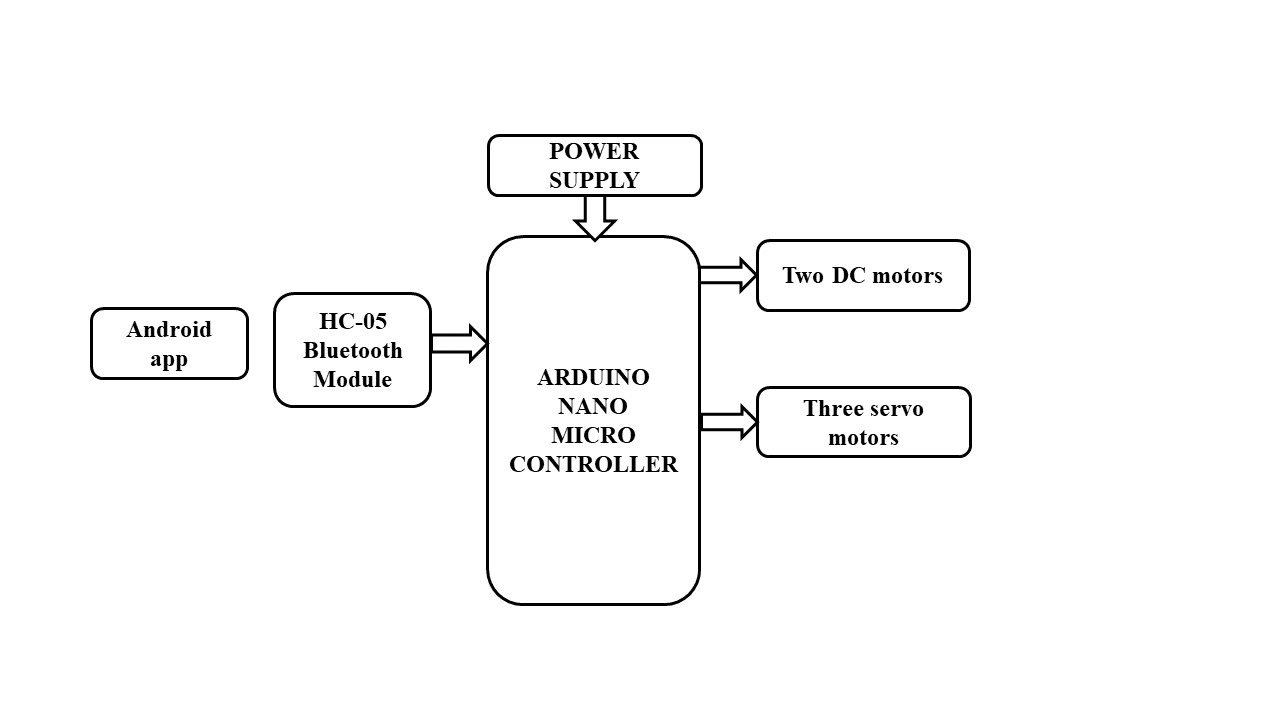

Block diagram:



video:
