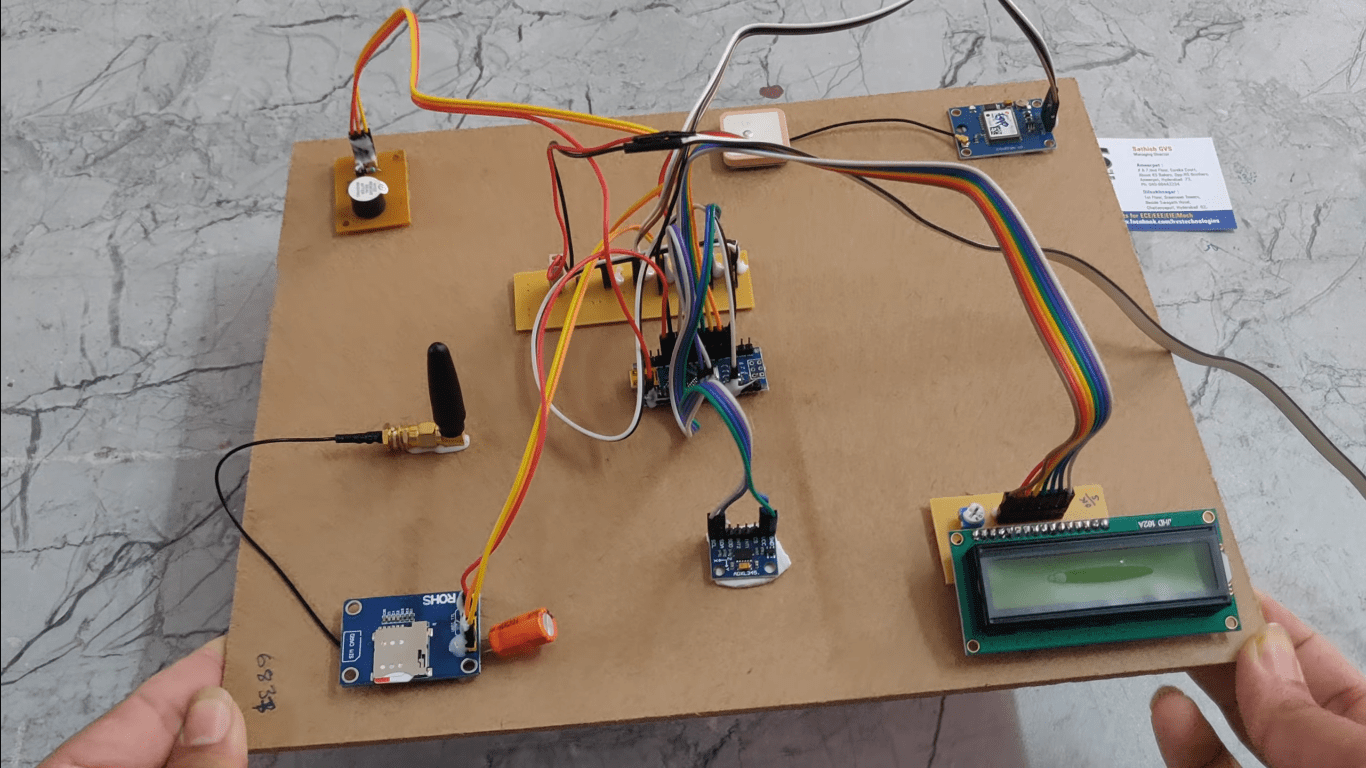

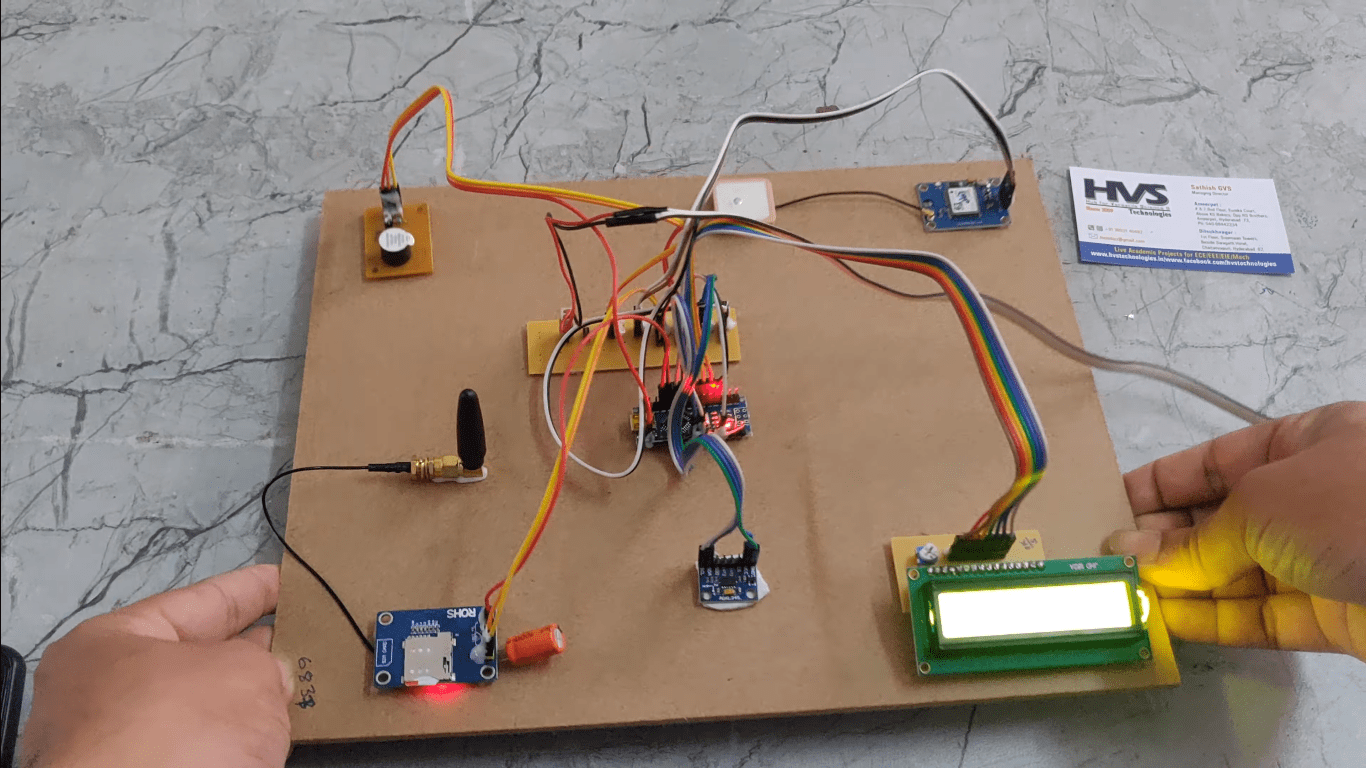

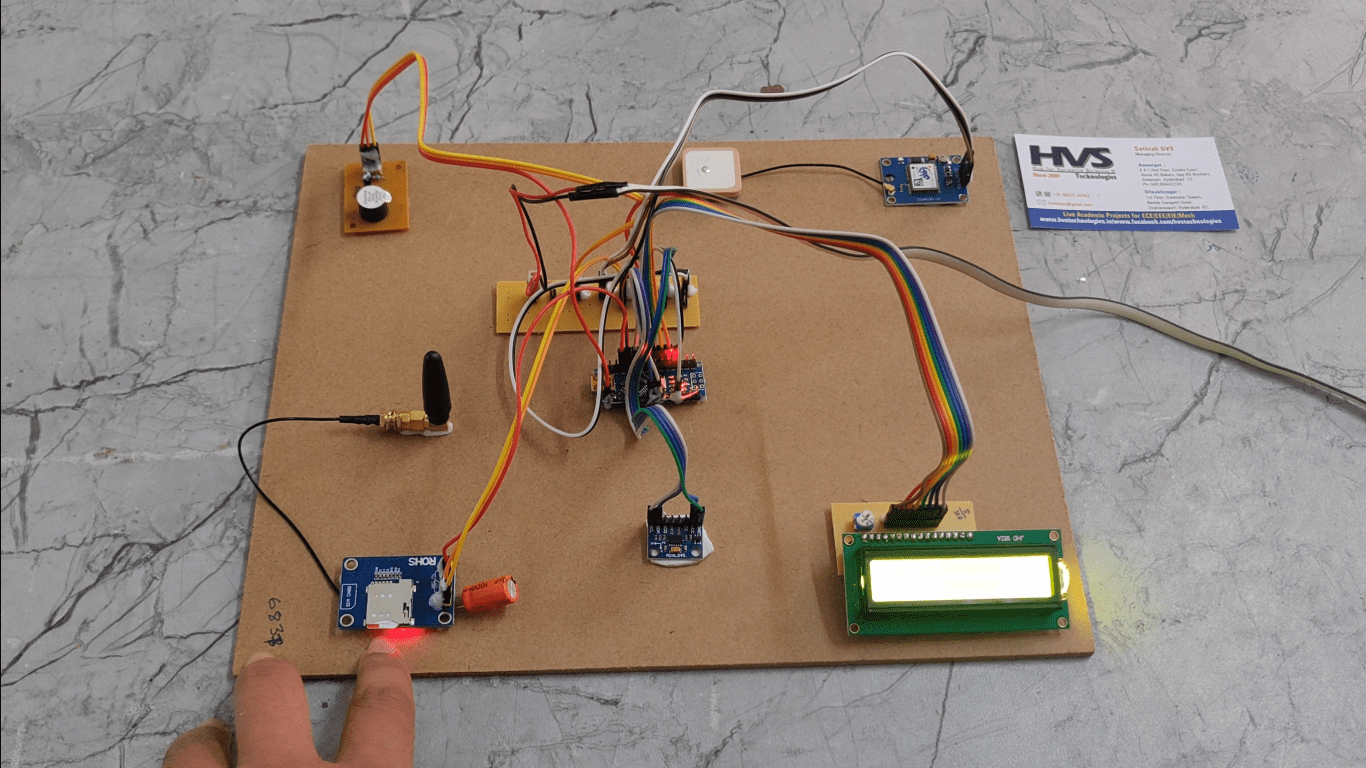

HVS-3557. Vehicle Accident Alerting System with Auto Dail
HVS-3557. Vehicle Accident Alerting System with Auto Dail
HVS-3557. Vehicle Accident Alerting System with Auto Dail
HVS-3557. Vehicle Accident Alerting System with Auto Dail

HVS-3557. Vehicle Accident Alerting System with Auto Dail

₹7,000.00

In this project we present Vehicle Accident detection and reporting system using Arduino UNO. The purpose of this project where in if any accident has occurred there will be a GSM module to send the SMS notification along with location to the predefine mobile number. This system consists of GPS module to track the location of the vehicle continuously. This system gives the alerts though buzzer. The GPS is the acronym for Global positioning system. This GPS receiver is capable of identifying the location in which it was present in the form of latitude and longitudes.

Categories ,  Tags ,
In this project we present Vehicle Accident detection and reporting system using Arduino UNO. The purpose of this project where in if any accident has occurred there will be a GSM module to send the SMS notification along with location to the predefine mobile number. This system consists of GPS module to track the location of the vehicle continuously. This system gives the alerts though buzzer. The GPS is the acronym for Global positioning system. This GPS receiver is capable of identifying the location in which it was present in the form of latitude and longitudes. The GPS gives the data received from the satellites. For this information the GPS communicates with at least three satellites in the space. The GSM modem provides the communication mechanism between the user and the microcontroller system in the form of SMS. The main controlling device of the project is Arduino. If the vehicle gets any accident; Arduino will send the alert SMS along with vehicle location to the predefine mobile number. then Arduino will activate the buzzer for alerts. The status of the project will display on LCD module. The main controlling device of the project is arduino which is interfaced to the input and output modules and take the necessary action upon the situation. The Microcontroller is loaded with a program written in embedded ‘C’ language to perform the task.



Features:
  1. GPS based vehicle tracking system.
  2. GSM based SMS alerting system.
  3. Audible alerts using Buzzer.
  4. Visible alerts using LCD display.
  5. To achieve this task using Arduino micro controller.
This project provides learning’s on the following advancements:
  1. Characteristics of GPS and GSM.
  2. Sensors working.
  3. LCD and Buzzer working.
  4. Embedded C programming.
The major building blocks of this project are:
  1. Adapter power Supply.
  2. Arduino Micro Controller.
  3. Global Positioning System (GPS).
  4. GSM module.
  5. ADXL345 Sensor.
  6. LCD display.
  7. Buzzer.
  Software’s Used:
  1. Arduino IDE studio compiler for dumping program.
  2. Express SCH for Circuit design.

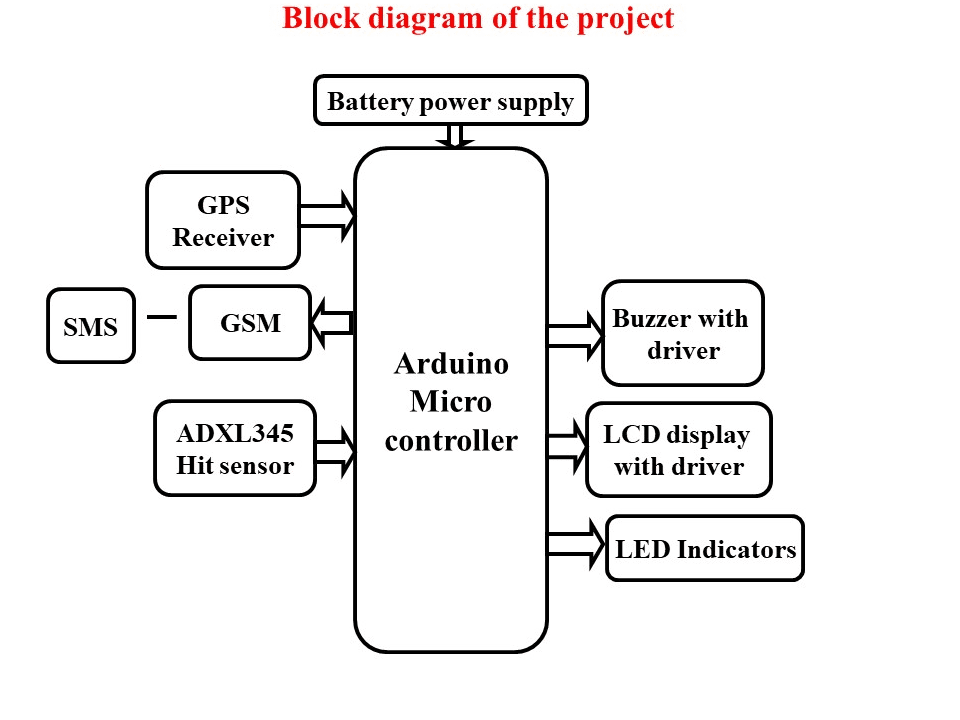

Block Diagram:

video:
