HVS-3363. Thyristor Power Control of Single-Phase Induction Motor Using IR Remote.
HVS-3363. Thyristor Power Control of Single-Phase Induction Motor Using IR Remote.

HVS-3363. Thyristor Power Control of Single-Phase Induction Motor Using IR Remote.

₹12,500.00

The project aims in designing a system which makes 230V AC motor speed and firing angle control through IR TV remote by using thyristor power.

Categories , ,  Tags ,

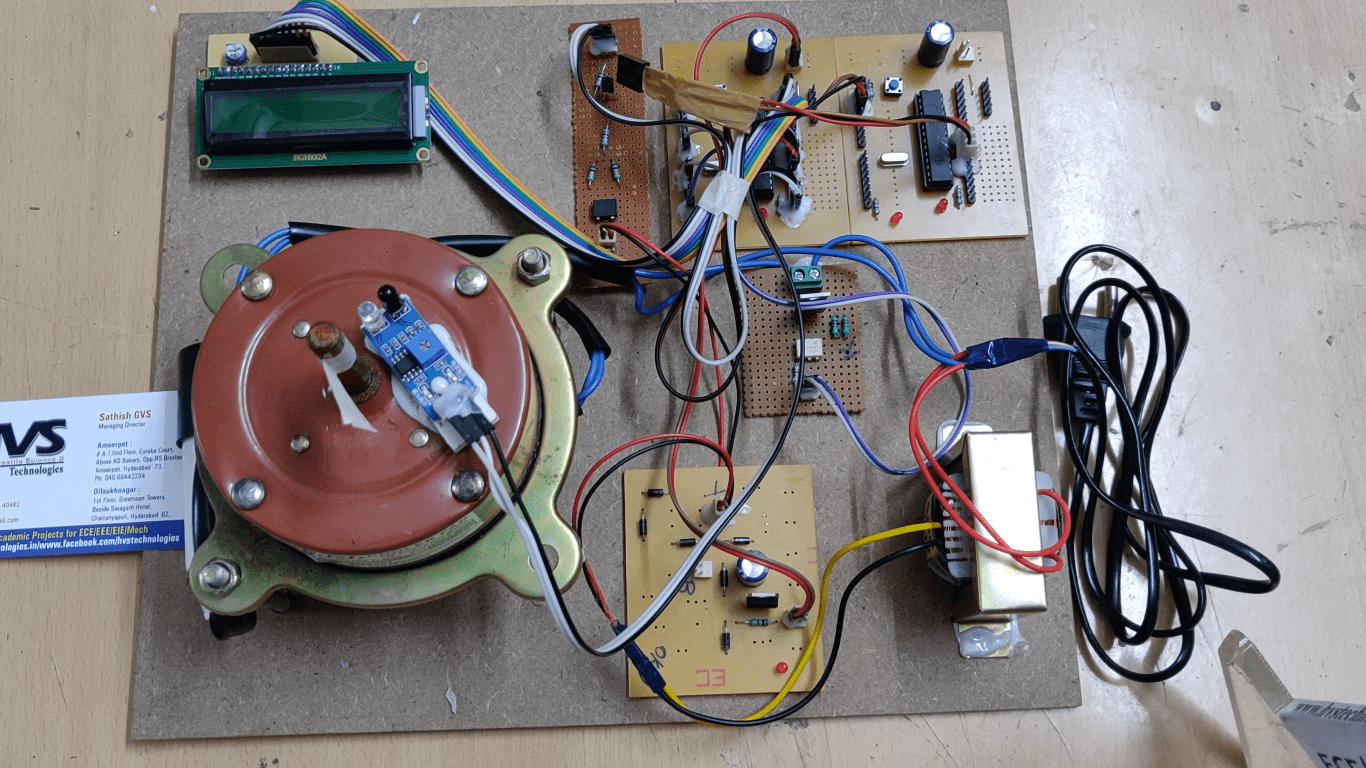

The project aims in designing a system which makes 230V AC motor speed and firing angle control through IR TV remote by using thyristor power. The controlling device of the whole system is a Microcontroller.TSOP1768 receiver module, IR sensor, LCD display, Triac, zero crossing detector, AC motor are interfaced to the Microcontroller. The data received by the TSOP1768 module from ir tv remote is fed as input to the controller. the controller converts this analog data into serial and fed as same to the microcontroller. The controller acts accordingly on the AC motor. A Triac and optically isolated Diac based circuit control the speed and firing angle of the AC motor 120watt. The IR sensor is used to detect the RPM of AC motor. Also, the speed of the AC motor can be display on LCD display. This system employs a zero-crossing detector for smooth operation of speed control. The optical isolation system safeguards the microcontroller-based system from high voltages. In achieving the task the controller is loaded with a program written using Embedded ‘C’ language.



The main objectives of the project are:

  1. Controlling 230V AC motor wirelessly through IR TV remote.
  2. Usage of thyristor power performing this task.
  3. Display of motor speed on LCD display.
  4. IR sensor-based RPM detection.
  5. Using zero crossing technique.
The project provides exposure to following technologies:
  1. Zero crossing detection.
  2. Thyristor working.
  3. IR sensor working.
  4. LCD working.
  5. IR TV remote along with TSOP1768 module working.
  6. Embedded C programming.
  7. PCB designing.
The major building blocks of the project are:
  1. Regulated Power Supply.
  2. PIC microcontrollers.
  3. Triac with optically isolated Diac.
  4. AC induction motor.
  5. Zero crossing detector
  6. IR TV remote.
  7. TSOP1768 receiver module.
  8. IR sensor.
  9. Crystal oscillator.
  10. Reset.
  11. LED indicators.
  12. LCD display.
Software’s used:
  1. PIC-C compiler for Embedded C programming.
  2. PIC kit 2 programmer for dumping code into Micro controller.
  3. Express SCH for Circuit design.

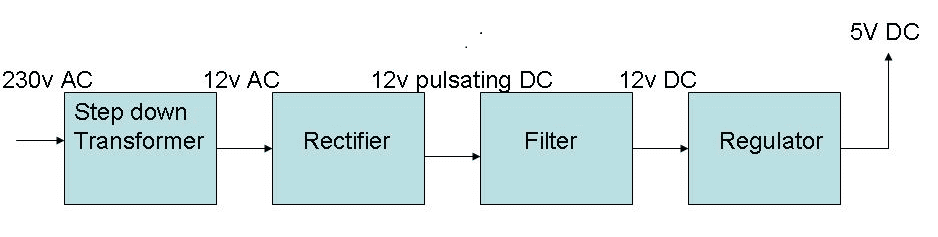

Regulated Power Supply:

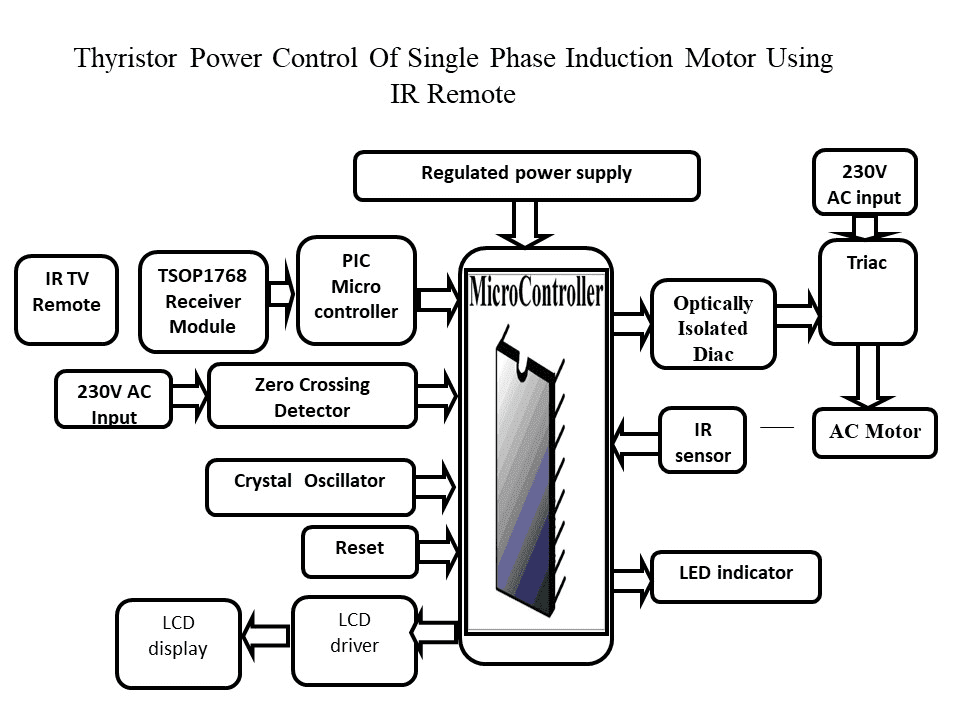

Block diagram:







video: [/iframe
