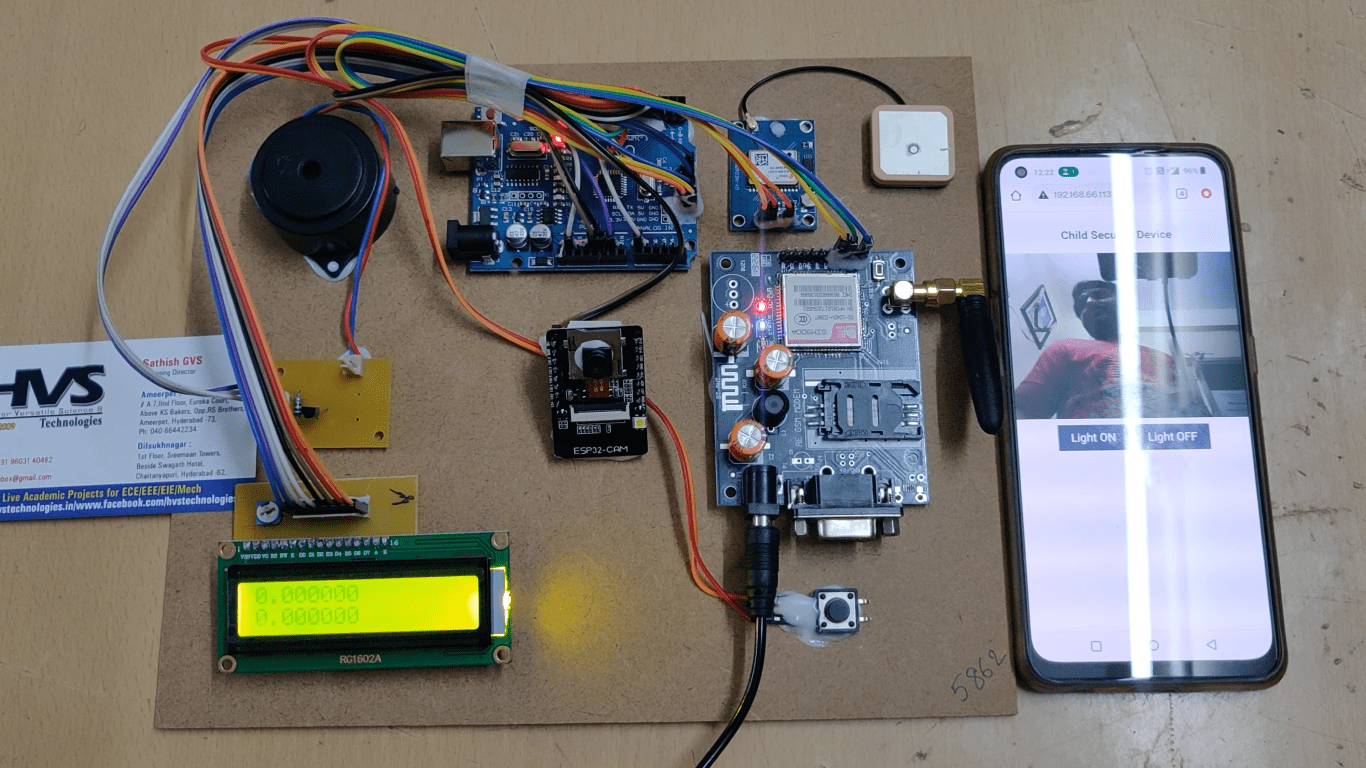

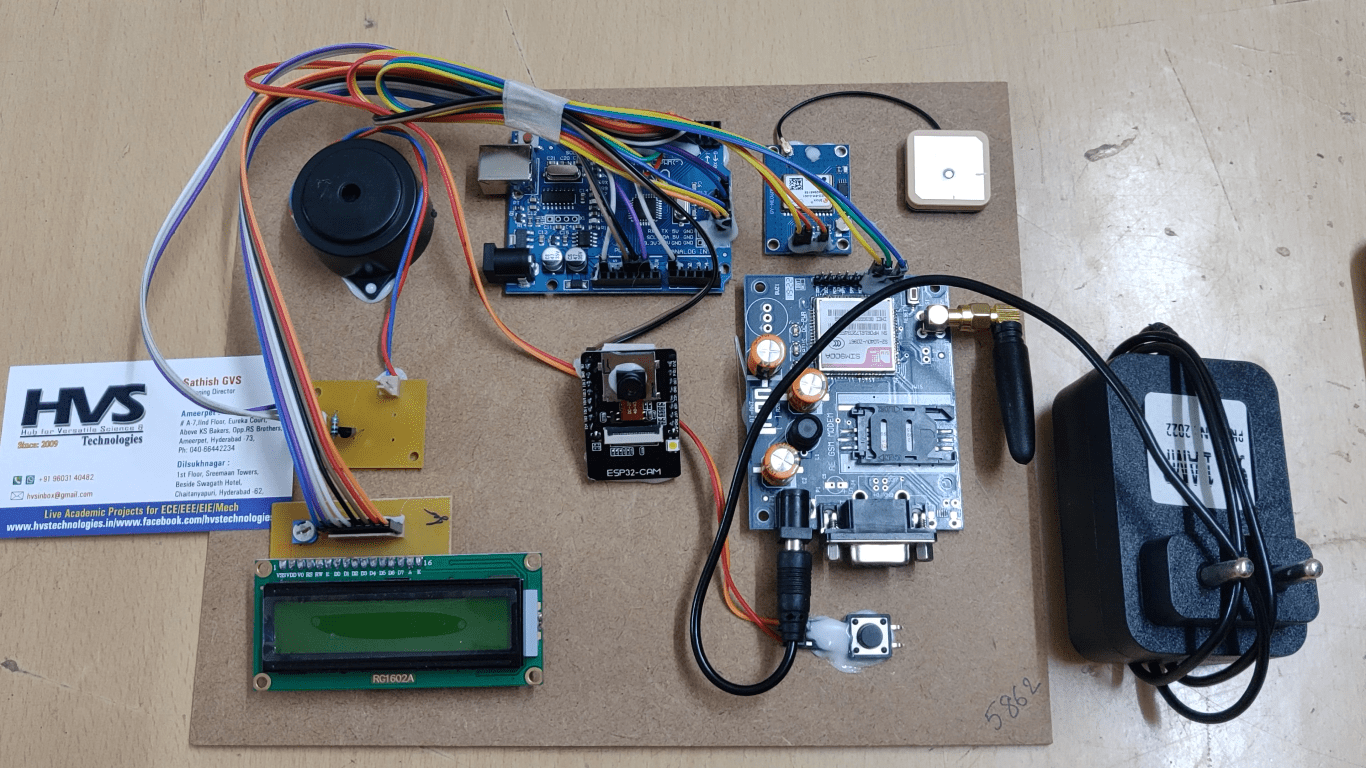

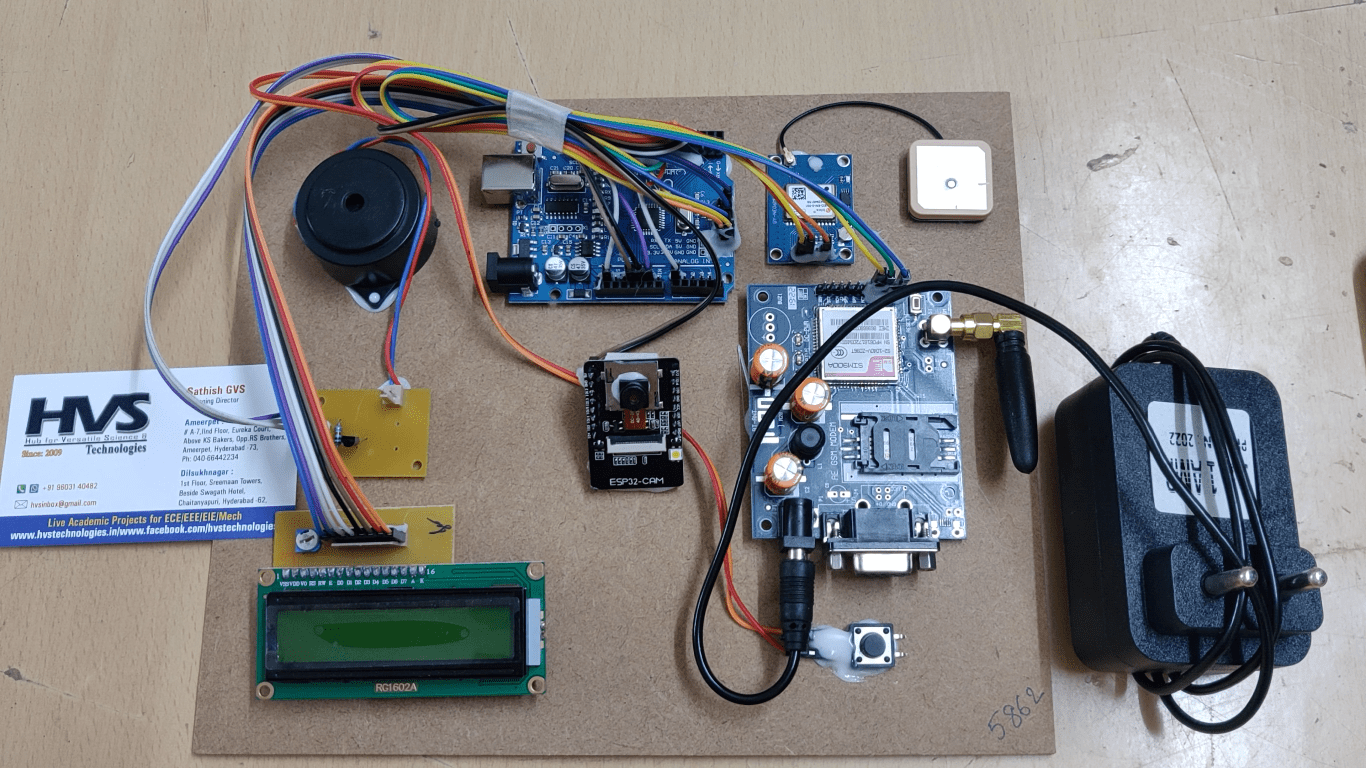

HVS-3300. Portable child security system.
HVS-3300. Portable child security system.
HVS-3300. Portable child security system.

HVS-3300. Portable child security system.

₹9,500.00

Although a lot of child safety systems are already available in the market but still a more sophisticated system is required to provide more safety and security. Thus in this project an alternative method is proposed for child security that may serve as a better alternative to rest of the available security methods.

Categories , ,  Tags ,
Although a lot of child safety systems are already available in the market but still a more sophisticated system is required to provide more safety and security. Thus in this project an alternative method is proposed for child security that may serve as a better alternative to rest of the available security methods. Here the system is designed around Arduino UNO micro-controller uses GPS, IOT and GSM. This device provides more security and safety for child. GPS technology is used to track the live location of the child. GSM is uses for sending the alert message to the predefine mobile number. Panic switch is used to send the alert message along with location in panic situation. ESP32 camera will capture the live video and sending into the webpage. This system uses siren which can be activate in panic situations. The status of the project will display on LCD module. The main controlling device of the project is Arduino UNO. To achieve this task arduino loaded program written in embedded C language. This project makes use of an onboard computer, which is commonly termed as arduino uno micro controller. It acts as heart of the project. This onboard computer can efficiently communicate with the output and input modules which are being used. The controller is provided with some internal memory to hold the code. This memory is used to dump some set of assembly instructions into the controller. And the functioning of the controller is dependent on these assembly instructions. The project “Portable child security system ” was designed an Arduino UNO based child safety device. GPS, ESP32 camera, siren, GSM, LCD and panic switch is interfaced to the arduino UNO microcontroller. Microcontroller will continuously take the location from GPS module and send this location to the predefine mobile number through GSM. When the person presses the panic button, it will send the alert message and activate the buzzer for alerts. The status of the project will display on LCD module. To achieve this task arduino loaded program written in embedded C language.



The major features of this project are:

  • GPS based continuous location tracking.
  • GSM based SMS alerting system.
  • IOT, ESP32 camera based live streaming.
  • Alerts in the form of SMS and siren.
  The project provides learning’s on the following advancements:
  1. Learn about GPS and IOT Technology.
  2. ARDUNANO UNO working and programming.
  3. Learn about esp32 cam.
  4. Learn about GSM technology.
The major building blocks of this project are:
  • 5V DC adapter power supply.
  • Arduino UNO.
  • Panic switch.
  • GPS.
  • GSM.
  • Siren.
  • ESP32 Camera.
  • LCD display.
Software’s used:
  1. Arduino IDE studio compiler for dumping code into Microcontroller.
  2. Express SCH for Circuit design.
  3. Embedded C language.

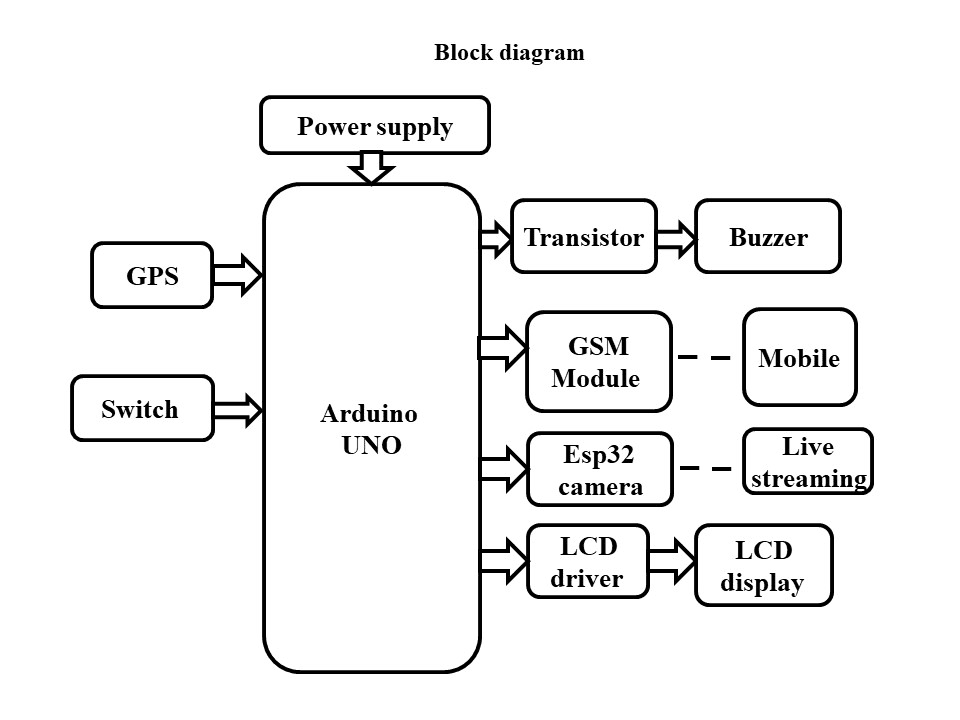

Block Diagram:





Video:
