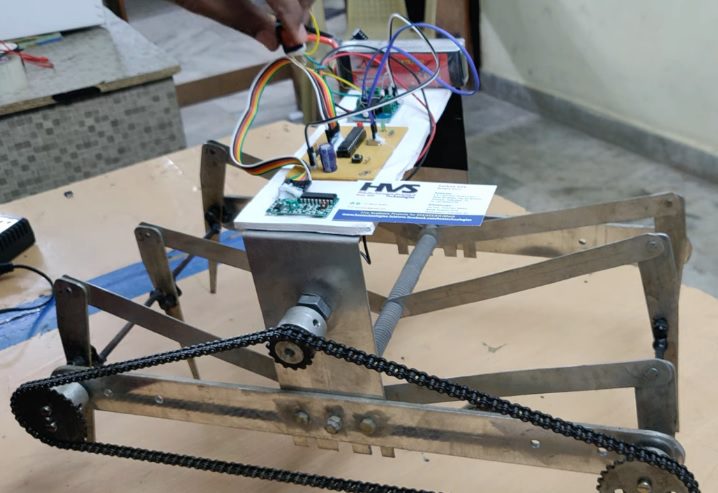

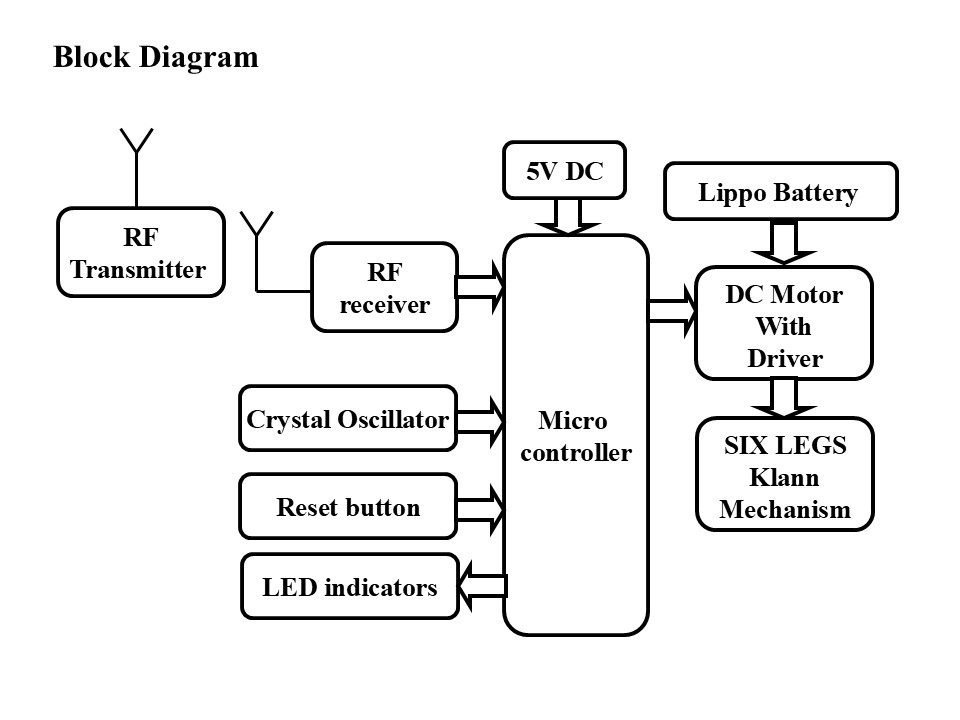

The Six-Legged Spider Bot Using Klann Mechanism (RF Controlled) is a mobile robotic platform designed to imitate the walking movement of a spider using a mechanical linkage known as the Klann mechanism. The robot is controlled wirelessly through an RF transmitter and RF receiver, allowing the user to move the robot remotely without physical connections. A microcontroller receives the RF commands and controls a DC motor through a motor driver circuit. The rotational motion of the motor is converted into a legged walking motion by the Klann linkage, enabling the robot to move over uneven surfaces more effectively than conventional wheeled robots. The system is powered by a Li-Po battery, making it portable and suitable for outdoor operation. A crystal oscillator provides accurate timing for the microcontroller, while a reset button ensures reliable operation and LED indicators display the system status. The six-legged structure provides better stability and balance during movement. The proposed robot can be used for surveillance, inspection, search-and-rescue support, and educational robotics applications where terrain adaptability is important.

Features:

• RF wireless remote-control operation
• Six-legged walking mechanism based on Klann linkage
• Microcontroller-based motion control
• DC motor with motor driver for efficient movement
• Stable and balanced locomotion
• Better movement on uneven surfaces than wheeled robots
• Portable and rechargeable Li-Po battery power supply.



Components Required:

• Microcontroller (PIC/Arduino-compatible)
• RF Transmitter Module
• RF Receiver Module
• DC Motor
• Motor Driver (L293D/L298N or equivalent)
• Li-Po Battery
• 5V DC Power Supply / Voltage Regulator
• Crystal Oscillator
• Reset Push Button
• LED Indicators
• Klann Mechanism Linkage Set
• Robot Chassis / Frame
• Connecting Rods and Linkages
• Wheels/Gears (if required for transmission).



Software’s used:

1. PIC-C compiler for Embedded C programming.
2. PIC kit 2 programmer for dumping code into Micro controller.
3. Express SCH for Circuit design.
