Automation has created a bigger hype in the electronics. The major reason for this hype is automation provides greater advantages like accuracy, energy conversation, reliability and more over the automated systems do not require any human attention. Any one of the requirements stated above demands for the design of an automated device. The energy conversation is very important in the current scenario and should be done to a maximum extent where ever it is possible. Generally, to extract any raw materials from mines, the workers have to go to deeper layers into the earth. To provide electricity (A.C) in such locations has created problems like open and short circuits. This leaded to the invention of new idea of producing electricity using foot step based on piezo electric sensors. A piezoelectric sensor is a device that uses the piezoelectric effect to measure pressure, acceleration, strain or force by converting them to an electrical charge and also displaying the voltage and weight on LCD using arduino microcontroller.

Features:

1. Piezo electric sensors.
2. Force, voltage monitoring.

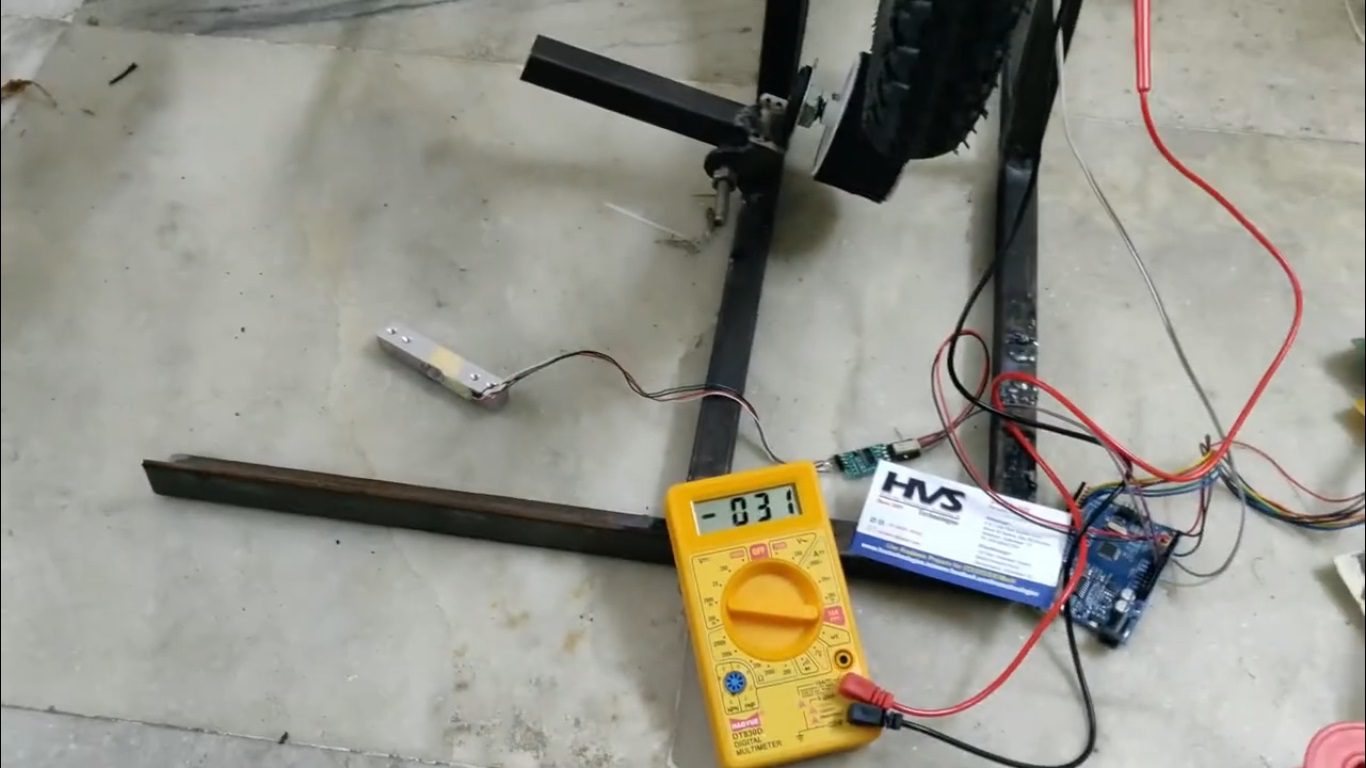

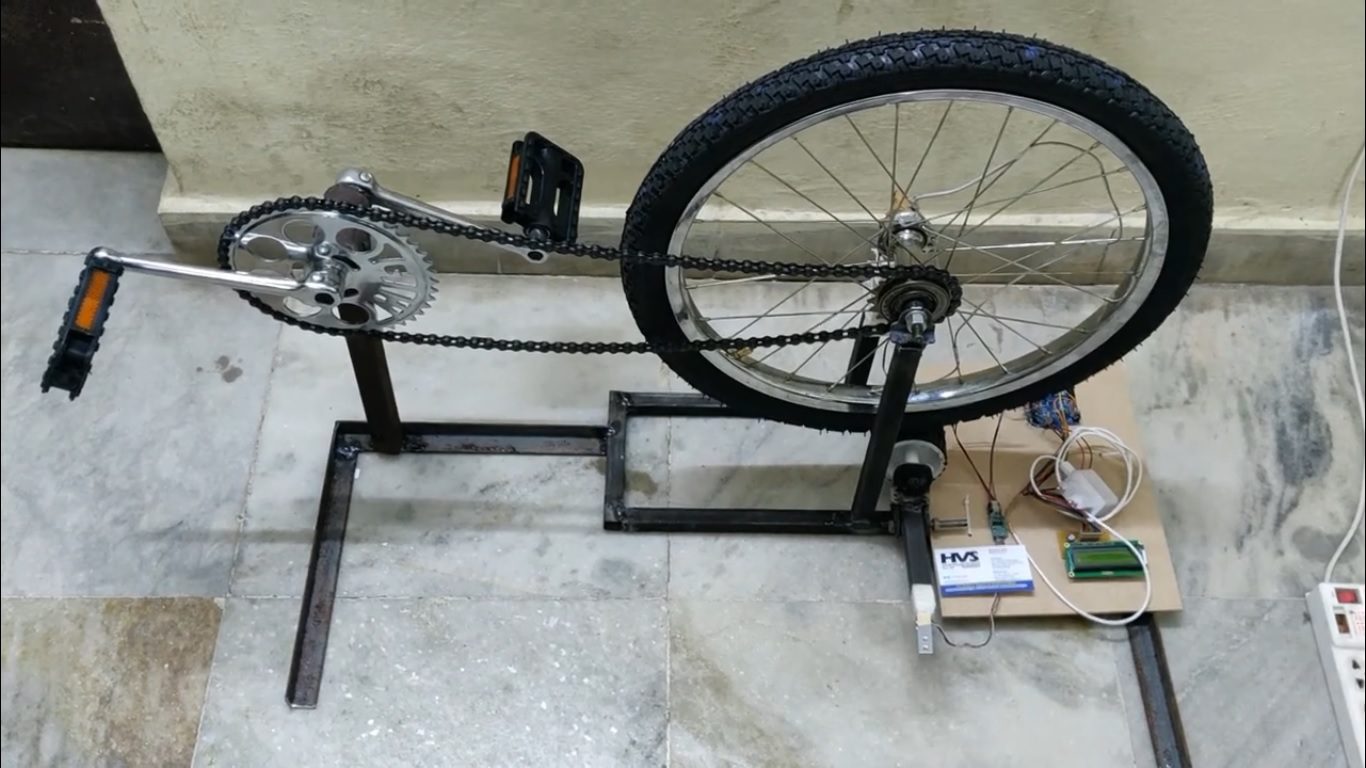

3. Using pedal, chain mechanism to apply the force on tyre which can make with piezo sensors.

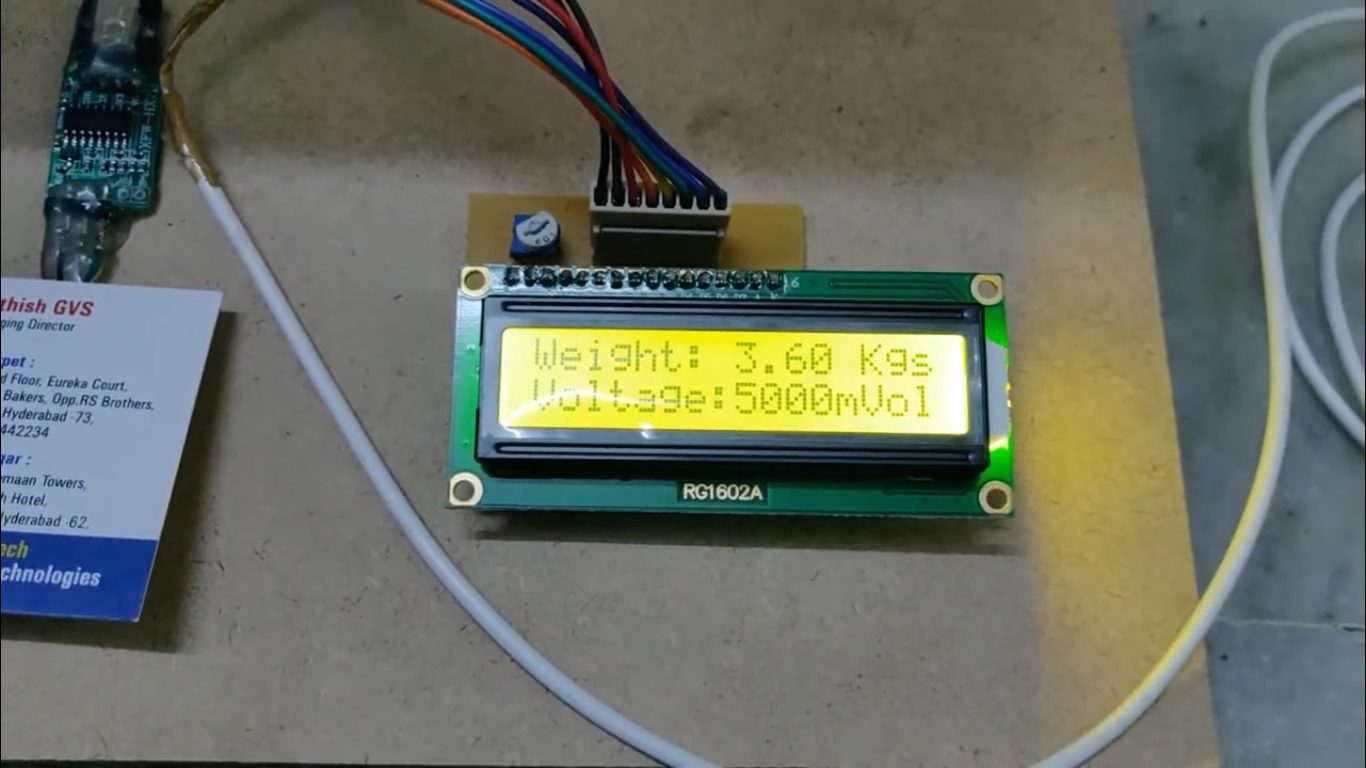

4. Usage LCD display for monitoring
5. Using arduino to achieve this task.

        The major building blocks of this project are:

1. Adapter Power supply.
2. Arduino Microcontroller.
3. LCD with driver
4. Piezo electric plates.
5. Force sensor.
6. Hx711 amplifier.
7. Voltage measuring circuit.
8. Iron frame.
9. Tyre
10. Pedal.
11. Chain
12. Bearings.

        Software’s used:

1. Arduino ide studio compiler.
2. Embedded C programming.
3. Express SCH for Circuit design.

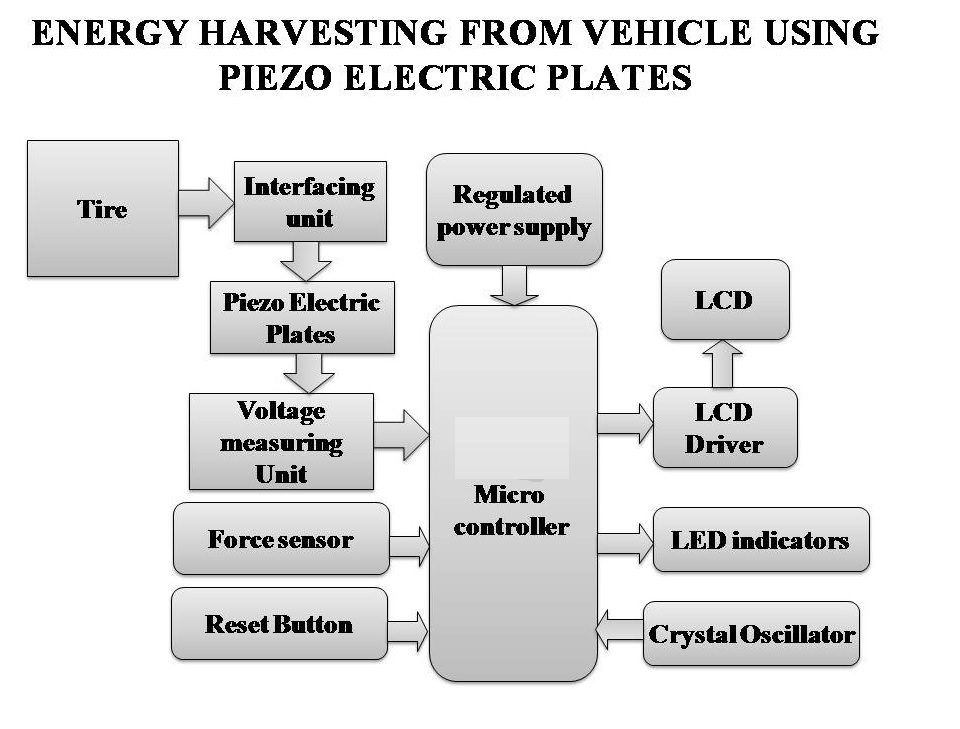

        Block Diagram:                 video:
