The project aims at developing a system which makes use of wind, hydel and solar energy to fabricate a vehicle. Wind, hydel and solar energy are treated as non renewable source of energy.   Wind and solar energy has been used since the earliest civilization to grind grain, pump water from deep wells, and power sailboats. Wind-mills in pre-industrial Europe were used for many things, including irrigation or drainage pumping, grain-grinding, saw-milling of timber, and the processing of other commodities such as spices, cocoa, paints and dyes, and tobacco. Before the U.S. installed an infrastructure of electricity wires, both water-pumping windmills and small wind electric turbines (“wind chargers”) were vital to farming and developing the American Great Plains and west. In recent decades, the industry has been perfecting the wind turbine to convert the power of the wind into electricity. The wind turbine has many advantages that make it an attractive energy source, especially in parts of the world where the transmission infrastructure is not fully developed. It is modular and can be installed relatively quickly, so it is easy to match electricity supply and demand. The fuel – the wind – is free and plentiful, which eliminates or reduces the need to purchase, ship, and store expensive fuels. It is flexible – with the power generated, households use can use appliances, such as lighting and refrigeration, schools can use computers and televisions, and industries can access a reliable power source. Perhaps most importantly, the generator does not produce any harmful emissions in the process of generating the electricity, unlike many other generation sources.   The project makes use of a wind turbine, a dynamo and solar panels. The combined energy obtained from non renewable resources is stored to a battery. The battery supply is fed to dc motors of vehicle which are controlled by the microcontroller. The amount of voltage obtained is displayed on LCD.

Features of this project:

1. Storing wind, Hydel and solar energy.
2. Usage of wind , hydel and solar energy for motors .
3. Amount of Energy is obtained displayed on LCD

    The major building blocks of this project are:

1. Wind turbine.
2. Solar panels.
3. Dynamo
4. charging
5. Microcontroller
6. DC Motors
7. LCD

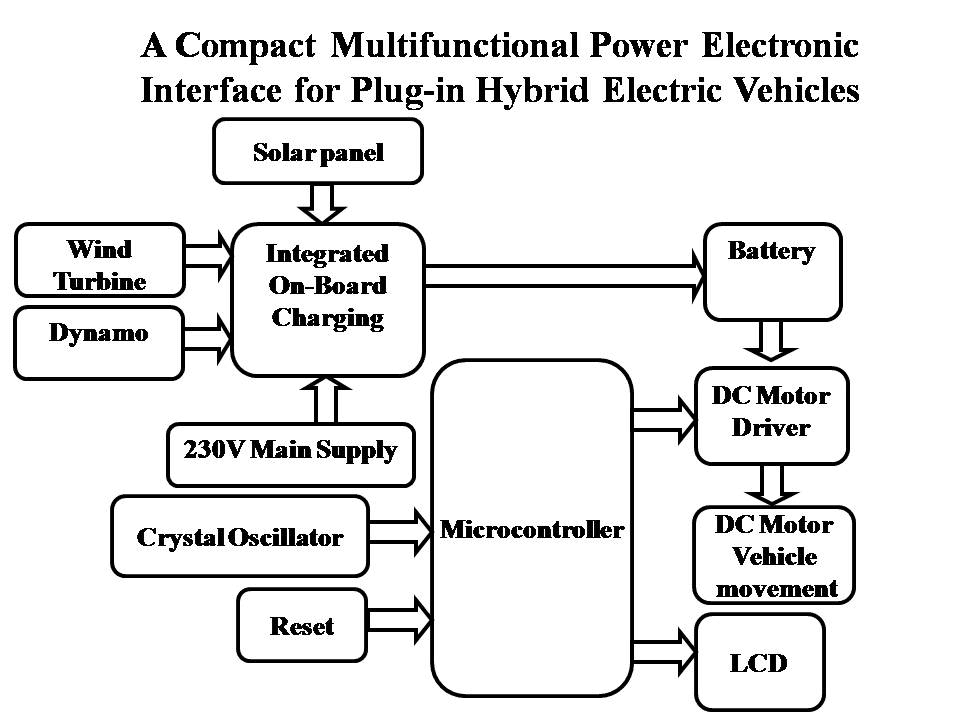

    Block Diagram:

video:
